Arrow Pneumatics F6 Adsorber Air Filter 3/4 Inch
Arrow Pneumatics F6 Adsorber Air Filter 3/4 Inch
SKU:ARR-bac959
Achieve ultra-clean air with the Arrow Pneumatics F6 Adsorber Air Filter. Remove oil vapors and contaminants for critical applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Arrow Pneumatics F6 Adsorber Air Filter 3/4 Inch
$129.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics F6 Adsorber Air Filter 3/4 Inch
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

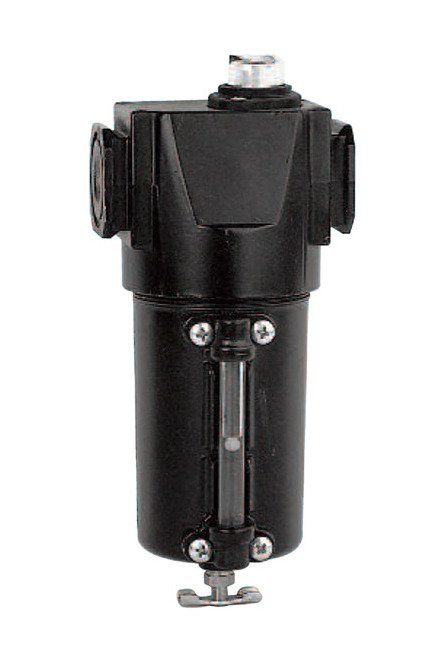

The Arrow Pneumatics F6 Adsorber Air Filter is designed for critical applications requiring ultra-clean air free from oil vapors. Featuring multi-wrapped layers of activated charcoal, this filter eliminates gaseous oil contamination, removes hydrocarbons, and ensures compressed air purity with oil concentrations as low as 0.01 PPM. Ideal for food plants, instrumentation, and pharmaceutical applications, the F6 Adsorber works efficiently when paired with refrigerated dryers and F5 Coalescing Filters, providing unparalleled filtration performance and longevity.
Product Specifications
Features 0
Protects end processes from gaseous oil contamination and rids compressed air of offensive oily odorsRemoves hydrocarbons for use in analytical instrumentsLow pressure dropPop-up indicator indicates abnormal condition such as plugged element or excessive flow. Critical protection requires changing element at regular intervals.10 oz./20 oz. black coated metal bowl with liquid level sightBlack coated aluminum housingManual 1/8" NPT twist drain
Kits Bowl Kits

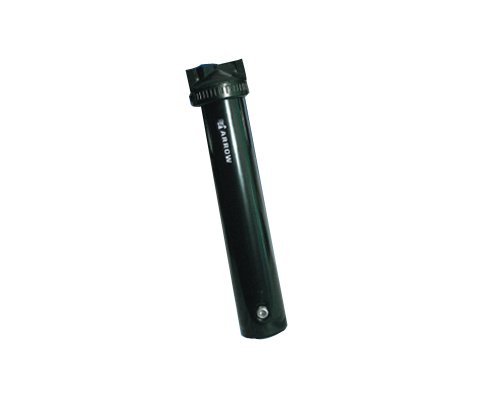

Metal bowl without sight - BKF47MMetal bowl with sight - BKF47W
Kits Element Kits
Charcoal wrapped - EK67, EK68
Kits Mounting Kit
Mounting kit - FBK7
Kits Repair Kit
Repair kit - RKF47, RKF48Replacement sight kit - WK57Indicator Pop-up kit - DPK-05
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha orderM - Metal bowl without sight glass - F674M
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Applications
Food Plants | Instrumentation | Pharmaceutical
Specifications Baffle Material
Plastic
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
20 oz
Specifications Brand
Arrow Pneumatics

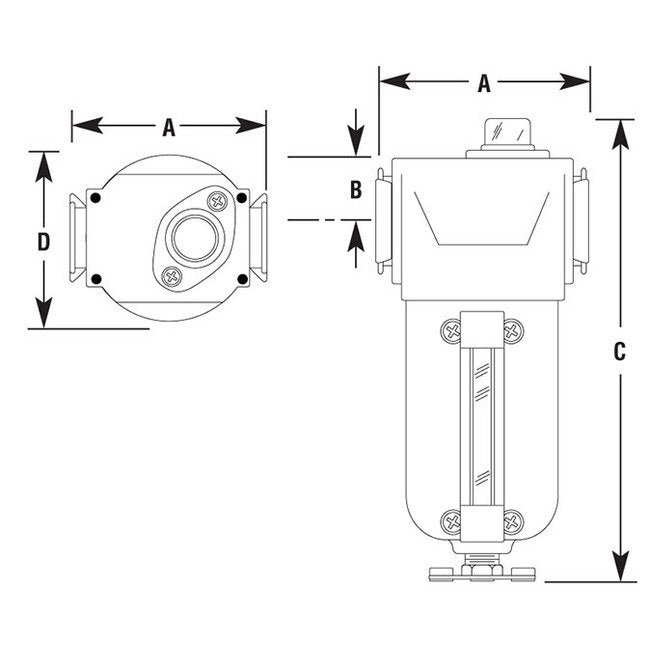

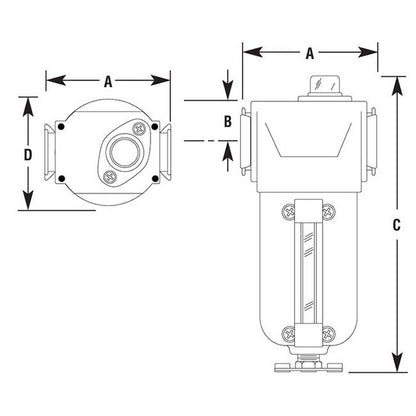

Specifications Dimension A
3-3/4 in
Specifications Dimension B
1-1/8 in
Specifications Dimension C
11-1/2 in
Specifications Dimension D
3 in
Specifications Elements
Multi-wrapped layers of impregnated activated charcoal particles to increase purification qualities. If the compressed air has been prepared by a suitable refrigerated dryer and F5A Coalescer filter, the F6 Absorber will insure oil concentrations of 0.001
Specifications Maximum Flow
110 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Metal Bowl Material With Sight
Zinc, Black E Coated

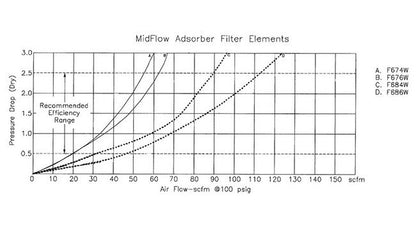

Specifications Note For Maximum Flow

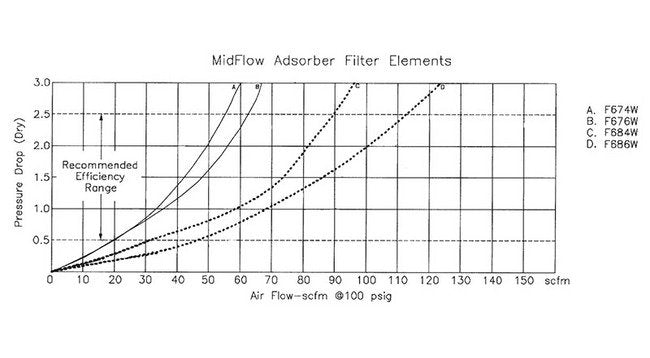

Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Pipe Size
3/4 in
Specifications Seals
Buna N
Specifications Weight
3.8 lb
