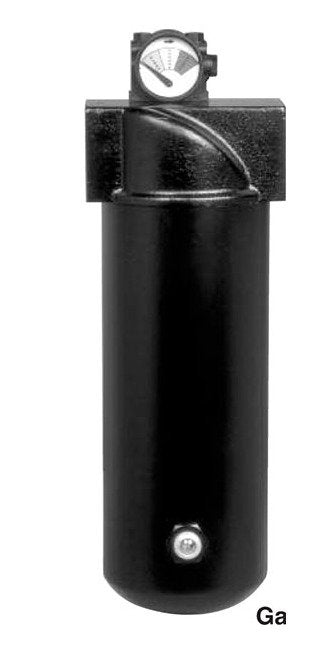

Arrow Pneumatics F6 High Flow Adsorber Air Filter
Arrow Pneumatics F6 High Flow Adsorber Air Filter
SKU:ARR-8537fd
Achieve unparalleled air purity with the Arrow Pneumatics F6 Adsorber Air Filter - designed for critical applications requiring oil vapor elimination and exceptional air quality.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Arrow Pneumatics F6 High Flow Adsorber Air Filter
$599.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics F6 High Flow Adsorber Air Filter
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics F6 High Flow Adsorber Air Filter sets a new standard in air purification for critical applications. Engineered to eliminate oil vapors with precision, this filter ensures oil concentrations of 0.01 PPM by weight, making it ideal for environments that demand the highest air quality. With a design that features a unique multi-layered impregnated activated charcoal element, this filter effectively removes gaseous oil contamination and offensive odors from compressed air. The F6 Adsorber guarantees low pressure drop, ensuring efficient performance, and reliability. Pair it with an F5A Coalescing Filter for optimal results and total system protection.
Product Specifications
Features 0
Protects end processes from gaseous oil contamination and rids compressed air of offensive oily odorsRemoves hydrocarbons for use in analytical instrumentsLow pressure dropManual 1/4" NPT twist drain
Kits Bowl Kits
Metal bowl with sight - BKF510WMetal bowl without sight - BKF510MMetal bowl with sight - BKF518WMetal bowl without sight - BKF518MMetal bowl with sight - BKF528WMetal bowl without sight - BKF528M
Kits Element Kits
Charcoal wrapped - EKF610, EKF618, EKF628
Kits Kits
Float for External Drain - 5200Drain Trap Kit - DKTF2
Kits Repair Kit
Repair kit - RKF511, RKF519, RKF529Replacement sight kit - BSF510
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha orderD - Differential pressure gauge - F610-10DT - External Float Drain - F610-10TW - Metal bowl with sight glass - F610-10W
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Applications
Food Plants | Instrumentation | Pharmaceutical
Specifications Baffle Material
Plastic
Specifications Body
Black Coated Aluminum
Specifications Bowl Capacity
300 oz
Specifications Brand
Arrow Pneumatics

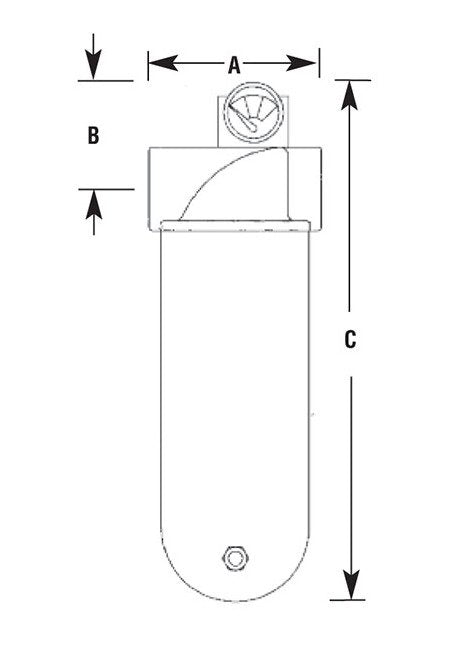

Specifications Dimension A
6-1/2 in
Specifications Dimension B
2 in
Specifications Dimension C
39 in
Specifications Elements
Multi-wrapped layers of impregnated activated charcoal particles to increase purification qualities. If the compressed air has been prepared by a suitable refrigerated dryer and F5A Coalescer filter, the F6 Absorber will insure oil concentrations of 0.001
Specifications Maximum Flow
840 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Black Coated Aluminum
Specifications Metal Bowl Material With Sight
Black Coated Aluminum

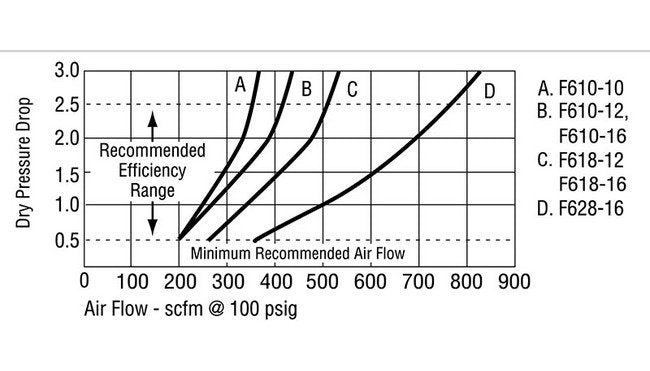

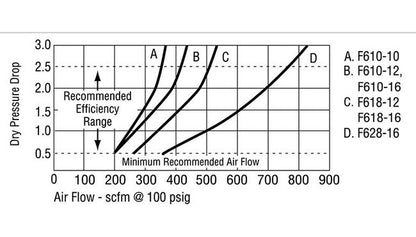

Specifications Note For Maximum Flow
Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
2 in
Specifications Seals
Buna N
Specifications Weight
23 lb
