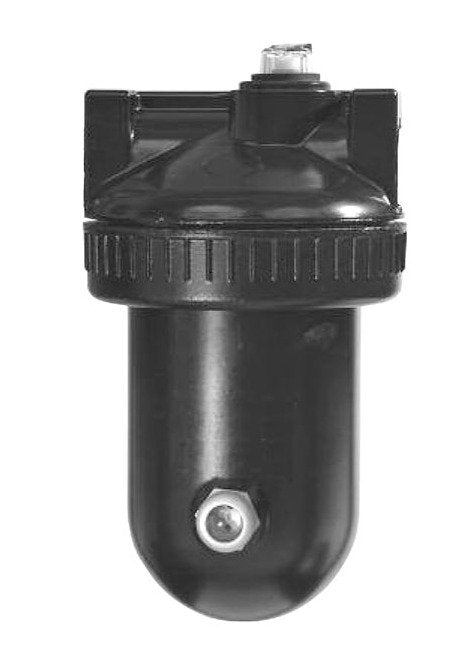

Arrow Pneumatics F7 310 High Flow Coalescing Air Filter
Arrow Pneumatics F7 310 High Flow Coalescing Air Filter
SKU:ARR-402ef4
Enhance air quality with Arrow Pneumatics F7 310 High Flow Coalescing Air Filter, designed for maximum efficiency and easy maintenance.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Arrow Pneumatics F7 310 High Flow Coalescing Air Filter
$189.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics F7 310 High Flow Coalescing Air Filter
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics F7 310 High Flow Coalescing Air Filter is designed to maximize filter efficiency, extend element life, and simplify maintenance. With a maximum flow rate of 310 scfm and a 0.03 micron borosilicate glass fiber element, this filter provides 99.97% filtration efficiency, removing particles down to 0.3 micron with 95% effectiveness. Features include a pop-up indicator for abnormal conditions, low pressure drop, and a 10 oz. black coated metal bowl with a liquid level sight. Compliant with stringent industry standards, this filter ensures optimal air quality and performance for industrial applications.
Product Specifications
Features 0
3 Micron absolute protection for 0.03 micron coalescing elementPop-up indicator indicates abnormal condition such as plugged element or excessive flow. Critical protection requires changing element at regular intervals.Low pressure drop10 oz. or 20 oz. black coated metal bowl with liquid level sightManual 1/8" NPT twist drain
Kits Bowl Kits
Metal with sight F505 - BKF329WMetal without sight F505 - BKF329MMetal with sight F508 - BKF364WMetal without sight F508 - BKF364M
Kits Element Kits
0.03 micron 505 - EKF7050.03 micron 508 - EKF708
Kits Kits
Internal Float Drain Kit - 5200Overnight Drain Kit (K) - CKFK
Kits Repair Kit
Repair kit 505 - RKF505Repair kit 508 - RKF508Replacement sight kit - WK35Indicator pop-up kit - DPK-05
Option 0
Add suffix to part number in alpha and numeric orderD - Differential pressure gauge - F708-10DFloat DrainF - Internal float drain - F705-06FWOvernight DrainsWhen a compressed air system is shut down, an overnight drain clears accumulated condensate from a filter bowl when the pressure falls to 3 psig or less.K - Overnight drain for metal bowl - F708-08KWTwist to manually drain.For Metal Bowl without sight delete W
Product Line Information 0
Untreated air enters the filter and flows through the inside portion of the element where it is first filtered through a pleated, 3 micron absolute particulate element. This pleated element uses a large surface area to filter dirt and solid particles down to 0.3 micron in size with 95 % efficiency. The air then travels through the 0.03 micron element which coalesces oil aerosols into liquid form. Oil removal occurs on the outer layer of the element and accumulates in the bowl sump
Specifications Bowl Capacity
60 oz
Specifications Brand
Arrow Pneumatics

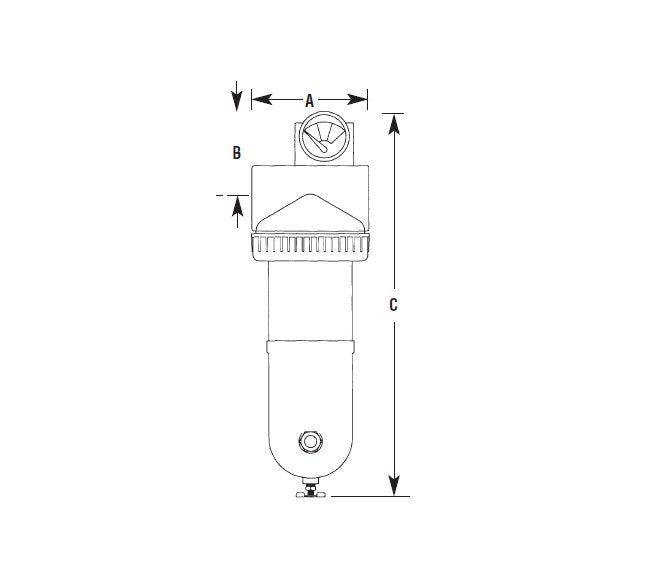

Specifications Dimension A
5-5/32 in
Specifications Dimension B
3-3/4 in
Specifications Dimension C
16-3/4 in
Specifications Elements
0.03 micron borosilicate glass fiber D.O.P. Efficiency: 99.97 %, Particle size removal, Remaining oil content by weight : 0.015 PPM with 3 micron absolute protection
Specifications Internal Float Drain
Buna N Float
Specifications Internal Float Drain Baffle Material
Aluminum
Specifications Internal Float Drain Body Finish
Black E Coated Aluminum
Specifications Internal Float Drain Seal Material
Buna N
Specifications Maximum Flow Rate
310 scfm
Specifications Maximum Pressure For Metal Bowl
250 psig
Specifications Maximum Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Color
Black
Specifications Metal Bowl Color With Sight
Black
Specifications Metal Bowl Finish
E Coated
Specifications Metal Bowl Finish With Sight
E Coated
Specifications Metal Bowl Material
Zinc
Specifications Metal Bowl Material With Sight
Zinc
Specifications Note For Internal Float Drain
Limits bowl temperature and pressure rating.
Specifications Operating Pressure Range For Internal Float Drain
30 to 175 psig
Specifications Operating Temperature Range For Internal Float Dr
40 to 120 ºF
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
1-1/2 in
Specifications Weight
6.3 lb
