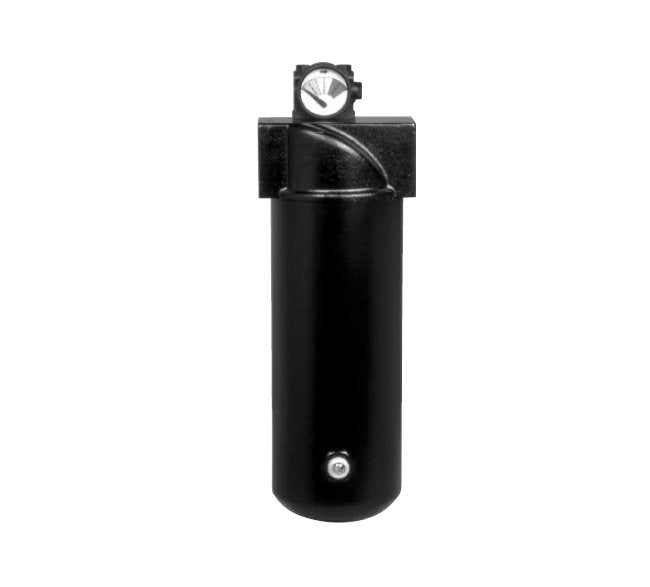

The Arrow Pneumatics F7 415 Coalescing Air Filter ensures maximum efficiency by filtering air through a 3-micron absolute particulate element and a 0.03-micron coalescing element, achieving 99.97% efficiency. With a 415 scfm flow rate and a 100 oz bowl capacity, this filter offers critical protection with a low-pressure drop. The black coated metal bowl with a liquid level sight and a manual twist drain make maintenance easy and convenient for extended element life.
Product Specifications
Features 0
3 Micron absolute protection for 0.03 micron coalescing elementPop-up indicator indicates abnormal condition such as plugged element or excessive flow. Critical protection requires changing element at regular intervals.Low pressure drop10 oz. or 20 oz. black coated metal bowl with liquid level sightManual 1/8" NPT twist drain
Kits Bowl Kits
Metal with sight - BKF510WMetal without sight - BKF510Metal with sight - BKF518WMetal without sight - BKF518Metal with sight - BKF528WMetal without sight - BKF528
Kits Element Kits
0.03 micron - EKF7100.03 micron - EKF718, EKF728
Kits Kits
Float for External Drain - 5200Drain Trap Kit - DKTF2
Kits Repair Kit
Repair kit - RKF511, RKF519,RKF529Replacement sight kit - BSF510
Option 0
Add suffix to part number in alpha orderD - Differential pressure gauge - F710-08DT - External Float Drain - F710-08TW - Metal bowl with sight glass - F710-08W
Product Line Information 0
Untreated air enters the filter and flows through the inside portion of the element where it is first filtered through a pleated, 3 micron absolute particulate element. This pleated element uses a large surface area to filter dirt and solid particles down to 0.3 micron in size with 95 % efficiency. The air then travels through the 0.03 micron element which coalesces oil aerosols into liquid form. Oil removal occurs on the outer layer of the element and accumulates in the bowl sump
Specifications Bowl Capacity
100 oz
Specifications Brand
Arrow Pneumatics

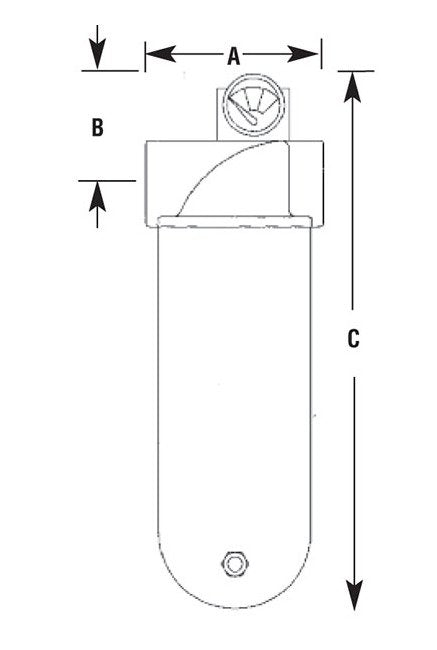

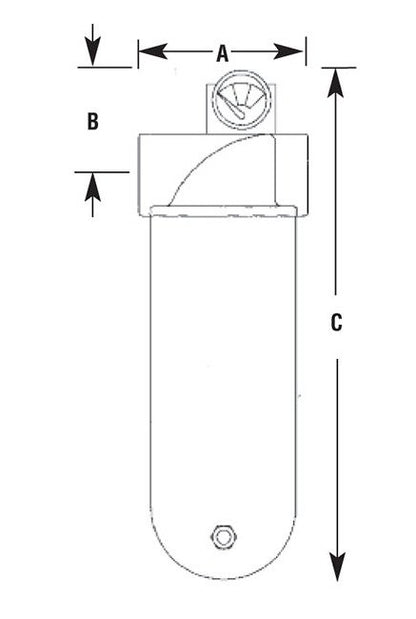

Specifications Dimension A
6-1/2 in
Specifications Dimension B
2 in
Specifications Dimension C
21 in
Specifications Elements
0.03 micron borosilicate glass fiber D.O.P. Efficiency: 99.97 %, Particle size removal, Remaining oil content by weight : 0.015 PPM with 3 micron absolute protection
Specifications Internal Float Drain Baffle Material
Plastic
Specifications Internal Float Drain Body Finish
Black Coated Aluminum
Specifications Internal Float Drain Seal Material
Buna N
Specifications Maximum Flow Rate
415 scfm
Specifications Maximum Pressure For Metal Bowl
250 psig
Specifications Maximum Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Color
Black
Specifications Metal Bowl Color With Sight
Black
Specifications Metal Bowl Finish
Coated Aluminum
Specifications Metal Bowl Finish With Sight
Coated Aluminum
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
1-1/2 in
Specifications Weight
16 lb
