Arrow Pneumatics F7 515 scfm High Flow Two-in-One Coalescing Air Filter

Name: Arrow Pneumatics F7 515 scfm High Flow Two-in-One Coalescing Air Filter
Brand: Marcuse & Son, Inc.
SKU: ARR-6dfd1a
Price: 249.99 USD
Availability: OutOfStock

SKU:ARR-6dfd1a

Enhance air quality with Arrow Pneumatics F7 Coalescing Air Filter for reliable filtration performance.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

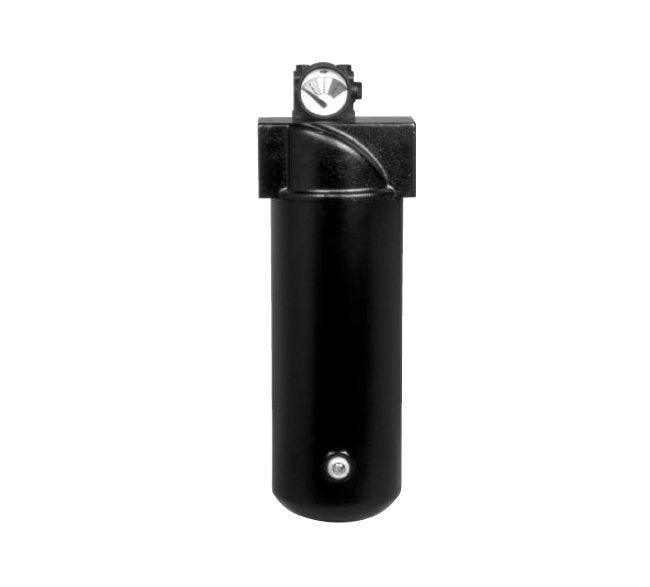

The Arrow Pneumatics F7 515 scfm High Flow Two-in-One Coalescing Air Filter offers superior filtration efficiency and extended element life, with easy maintenance. Featuring 0.03 micron borosilicate glass fiber elements, this filter provides 99.97% D.O.P. efficiency and removes particles down to 0.3 micron in size. Its built-in pop-up indicator alerts users of any abnormal conditions, ensuring optimal performance. With a durable black coated aluminum metal bowl and a manual twist drain, this filter is ideal for industrial applications requiring precision air filtration.

Product Specifications

Features 0

3 Micron absolute protection for 0.03 micron coalescing elementPop-up indicator indicates abnormal condition such as plugged element or excessive flow. Critical protection requires changing element at regular intervals.Low pressure drop10 oz. or 20 oz. black coated metal bowl with liquid level sightManual 1/8" NPT twist drain

Kits Bowl Kits

Metal with sight - BKF510WMetal without sight - BKF510Metal with sight - BKF518WMetal without sight - BKF518Metal with sight - BKF528WMetal without sight - BKF528

Kits Element Kits

0.03 micron - EKF7100.03 micron - EKF718, EKF728

Kits Kits

Float for External Drain - 5200Drain Trap Kit - DKTF2

Kits Repair Kit

Repair kit - RKF511, RKF519,RKF529Replacement sight kit - BSF510

Option 0

Add suffix to part number in alpha orderD - Differential pressure gauge - F710-08DT - External Float Drain - F710-08TW - Metal bowl with sight glass - F710-08W

Product Line Information 0

Untreated air enters the filter and flows through the inside portion of the element where it is first filtered through a pleated, 3 micron absolute particulate element. This pleated element uses a large surface area to filter dirt and solid particles down to 0.3 micron in size with 95 % efficiency. The air then travels through the 0.03 micron element which coalesces oil aerosols into liquid form. Oil removal occurs on the outer layer of the element and accumulates in the bowl sump

Specifications Bowl Capacity

200 oz

Specifications Brand

Arrow Pneumatics

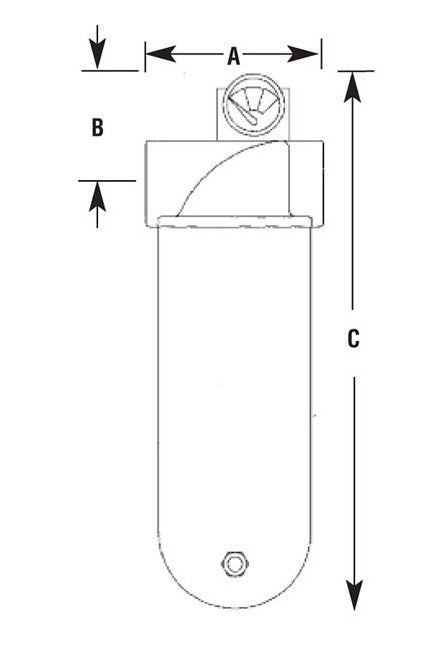

Specifications Dimension A

6-1/2 in

Specifications Dimension B

2 in

Specifications Dimension C

28-3/4 in

Specifications Elements

0.03 micron borosilicate glass fiber D.O.P. Efficiency: 99.97 %, Particle size removal, Remaining oil content by weight : 0.015 PPM with 3 micron absolute protection

Specifications Internal Float Drain Baffle Material

Plastic

Specifications Internal Float Drain Body Finish

Black Coated Aluminum

Specifications Internal Float Drain Seal Material

Buna N

Specifications Maximum Flow Rate

515 scfm

Specifications Maximum Pressure For Metal Bowl

250 psig

Specifications Maximum Pressure For Metal Bowl With Sight

250 psig

Specifications Metal Bowl Color

Black

Specifications Metal Bowl Color With Sight

Black

Specifications Metal Bowl Finish

Coated Aluminum

Specifications Metal Bowl Finish With Sight

Coated Aluminum

Specifications Operating Temperature Range For Metal Bowl

40 to 160 ºF

Specifications Operating Temperature Range For Metal Bowl With S

40 to 160 ºF

Specifications Pipe Size

1-1/2 in

Specifications Weight

19 lb
