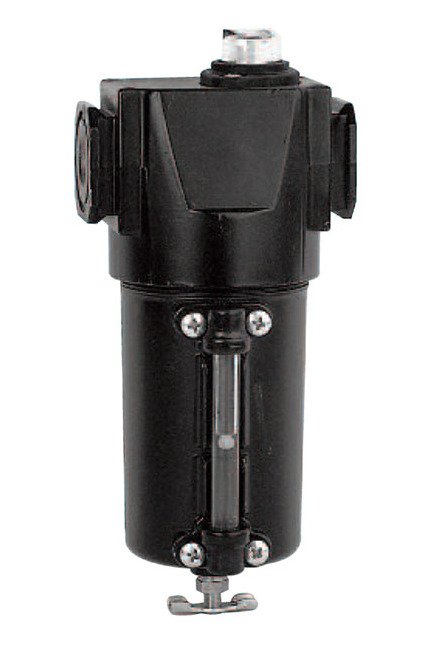

Arrow Pneumatics F7 60 scfm Two-in-One Coalescing Air Filter

Arrow Pneumatics F7 60 scfm Two-in-One Coalescing Air Filter

ARR-f750f9

Enhance air quality with the Arrow Pneumatics F7 60 scfm Two-in-One Coalescing Air Filter, featuring 3 Micron absolute protection and easy maintenance options.

$99.99
$99.99
Sale

Initiate Order

Arrow Pneumatics F7 60 scfm Two-in-One Coalescing Air Filter

Arrow Pneumatics F7 60 scfm Two-in-One Coalescing Air Filter

$99.99

Quantity: 1

Claim Your Seller Account

Arrow Pneumatics F7 60 scfm Two-in-One Coalescing Air Filter

Arrow Pneumatics F7 60 scfm Two-in-One Coalescing Air Filter

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your air filtration system with the Arrow Pneumatics F7 60 scfm Two-in-One Coalescing Air Filter. This filter offers 3 Micron absolute protection with a 0.03 micron coalescing element, ensuring 99.97% efficiency in removing particles and oil aerosols. The pop-up indicator alerts you to any abnormal conditions, while the low-pressure drop and manual twist drain make maintenance easy. With a durable black coated metal bowl and various kit options available, this filter is designed for maximum efficiency and ease of use.

Product Specifications

Features 0
3 Micron absolute protection for 0.03 micron coalescing elementPop-up indicator indicates abnormal condition such as plugged element or excessive flow. Critical protection requires changing element at regular intervals.Low pressure drop10 oz. or 20 oz. black coated metal bowl with liquid level sightManual 1/8" NPT twist drain
Kits Bowl Kits
10 oz. with sight - BKF47W10 oz. without sight - BKF47M20 oz. with sight - BKF48W20 oz. without sight - BKF48M
Kits Element Kits
0.03 micron - EK770.03 micron - EK78
Kits Kits
Internal Float Drain Kit - 5200Overnight Metal (K) - CKFK
Kits Mounting Kit
Mounting kit - FBK7
Kits Repair Kit
Repair kit - RKF47, RKF48Replacement sight kit - WK57Indicator Pop-up kit - DPK-05
Option 0
Add suffix to part number in alpha orderFloat DrainF - Internal float drain - F774FWOvernight DrainsWhen a compressed air system is shut down, an overnight drain clears accumulated condensate from a filter bowl when the pressure falls to 3 psig or less.K - Overnight drain for metal bowl - F774KWTwist to manually drain.M - Black coated metal bowl - F774M
Product Line Information 0
Untreated air enters the filter and flows through the inside portion of the element where it is first filtered through a pleated, 3 micron absolute particulate element. This pleated element uses a large surface area to filter dirt and solid particles down to 0.3 micron in size with 95 % efficiency. The air then travels through the 0.03 micron element which coalesces oil aerosols into liquid form. Oil removal occurs on the outer layer of the element and accumulates in the bowl sump
Specifications Bowl Capacity
10 oz
Specifications Brand
Arrow Pneumatics

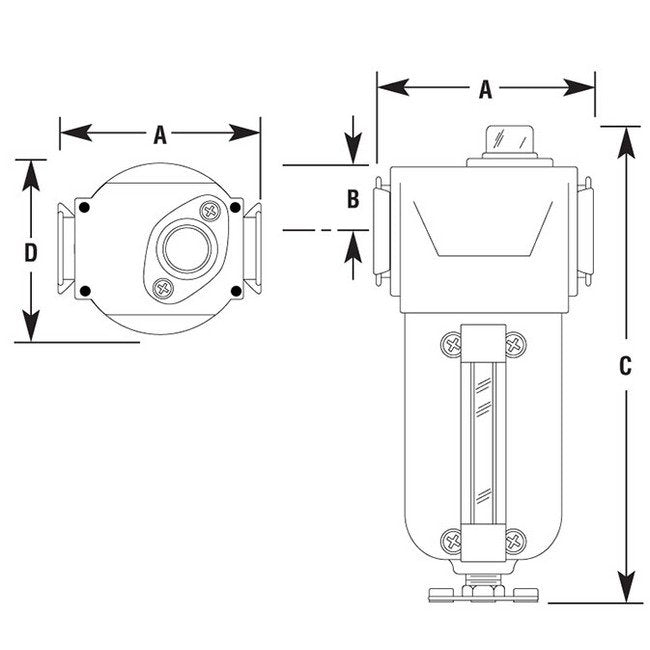

Specifications Dimension A
3-3/4 in
Specifications Dimension B
1-1/8 in
Specifications Dimension C
8-1/4 in
Specifications Dimension D
3 in
Specifications Elements
0.03 micron borosilicate glass fiber D.O.P. Efficiency: 99.97 %, Particle size removal, Remaining oil content by weight : 0.015 PPM with 3 micron absolute protection
Specifications Internal Float Drain Baffle Material
Plastic
Specifications Internal Float Drain Body Finish
Black E Coated Aluminum
Specifications Internal Float Drain Seal Material
Buna N
Specifications Maximum Flow Rate
60 scfm
Specifications Maximum Pressure For Metal Bowl
250 psig
Specifications Maximum Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Color
Black
Specifications Metal Bowl Color With Sight
Black
Specifications Metal Bowl Finish
E Coated
Specifications Metal Bowl Finish With Sight
E Coated
Specifications Metal Bowl Material
Zinc
Specifications Metal Bowl Material With Sight
Zinc
Specifications Note For Internal Float Drain
Limits bowl temperature and pressure rating.
Specifications Operating Pressure Range For Internal Float Drain
30 to 175 psig
Specifications Operating Temperature Range For Internal Float Dr
40 to 120 ºF
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
3/4 in
Specifications Weight
2.7 lb
