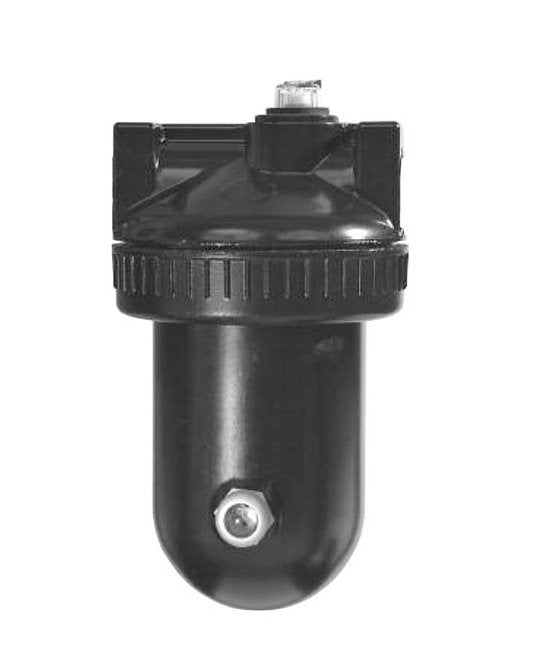

Arrow Pneumatics High Flow Oil Removing Air Filter - 1-1/2 in Pipe Size
Arrow Pneumatics High Flow Oil Removing Air Filter - 1-1/2 in Pipe Size
SKU:ARR-44a2b9
Upgrade to Arrow Pneumatics High Flow Oil Removing Air Filter, part of F4/F5/F6 series, for efficient oil aerosol removal & submicron particle filtration.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Arrow Pneumatics High Flow Oil Removing Air Filter - 1-1/2 in Pipe Size
$199.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics High Flow Oil Removing Air Filter - 1-1/2 in Pipe Size
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your air filtration system with the Arrow Pneumatics High Flow Oil Removing Air Filter designed for maximum performance and efficiency. This coalescing filter, part of the F4/F5/F6 series, effectively removes oil aerosols and submicron particles. With a 0.9 micron borosilicate glass fiber element and a steel black E-coated metal bowl, this filter ensures 95% D.O.P efficiency and limits oil content to 2.5 PPM. Ideal for critical applications in industrial, government, and institutional settings, the filter features a low pressure drop, long element life, and compatibility with other Arrow Pneumatics filters for comprehensive air system protection.
Product Specifications
Features 0
0.9 micron elementManual 1/8" NPT twist drainLow pressure dropLong element life
Kits Bowl Kits
Metal with sight F405 - BKF329WMetal without sight F405 - BKF329MMetal with sight F408 - BKF364WMetal without sight F408 - BKF364
Kits Element Kits
0.9 micron F405 - EKF4050.9 micron F408 - EKF408
Kits Kits
Internal Float Drain Kit - 5200
Kits Repair Kit
Repair kit - RKF505 Repair kit - RKF508 Replacement sight kit 405 - WK35 Replacement sight kit 408 - WK35 Overnight drain kit - CKFK Sight glass kit - DPK-05
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha and numeric orderD - Differential pressure gauge - F408-10D
Option Float Drain
An internal float rises as condensate accumulates in a filter bowl to activate the drain.F - Internal float drain - F405-06FW, F408-08FW
Option Overnight Drains
An overnight drain operates when a compressed air system is shut down. It clears accumulated condensate from a filter bowl when pressure falls to 3 psig or less.K - Overnight drain - F408-08KW Twist to manually drain.For Metal Bowl without sight delete W
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Baffle Material
Aluminum
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
60 oz
Specifications Brand
Arrow Pneumatics

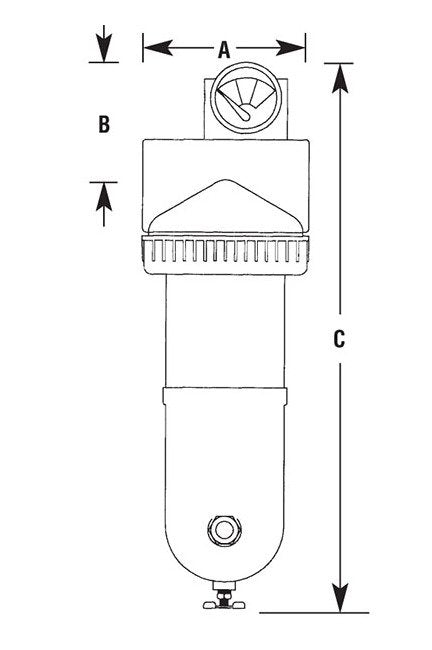

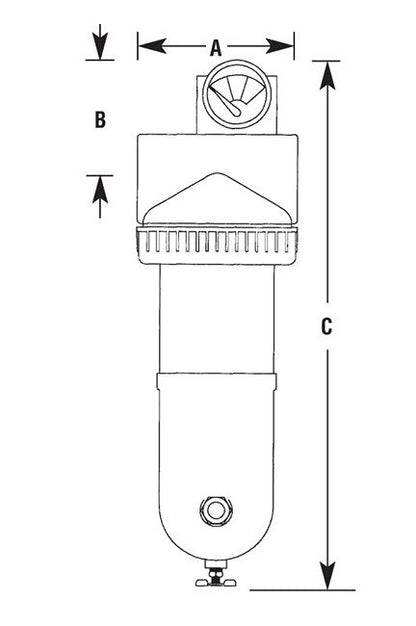

Specifications Dimension A
5-5/32 in
Specifications Dimension B
3-3/4 in
Specifications Dimension C
16-3/4 in
Specifications Elements
0.9 micron borosilicate glass fiber D.O.P. Efficiency: 95%, Particle size removal, Remaining oil content by wt.: 2.5 PPM
Specifications Internal Float Drain
Buna N Float
Specifications Maximum Flow
400 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material
Steel, Black E Coated
Specifications Metal Bowl Material With Sight
Steel, Black E Coated
Specifications Note For Internal Float Drain
Limits bowl temperature and pressure rating.

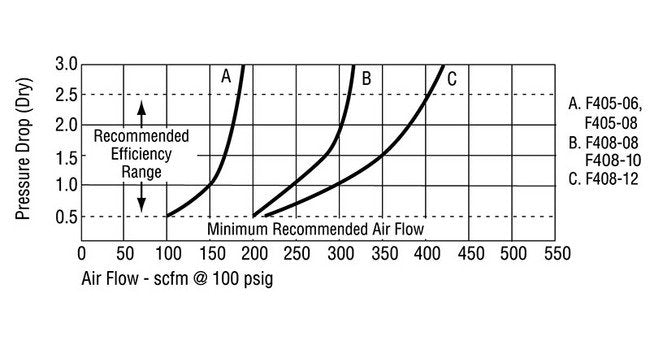

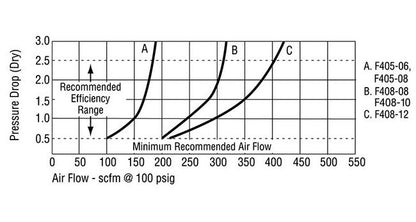

Specifications Note For Maximum Flow
Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Pressure Range For Internal Float Drain
40 to 120 ºF
Specifications Operating Temperature Range For Internal Float Dr
30 to 175 psig
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
1-1/2 in
Specifications Seals
Buna N
Specifications Weight
6.3 lb
