Arrow Pneumatics High Flow Oil Removing Coalescing Air Filter - 1-1/4 in Pipe Size
Arrow Pneumatics High Flow Oil Removing Coalescing Air Filter - 1-1/4 in Pipe Size
SKU:ARR-4b4410
Advanced Arrow Pneumatics Coalescing Air Filter for high-efficiency oil removal with 0.9 micron element & durable design.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Arrow Pneumatics High Flow Oil Removing Coalescing Air Filter - 1-1/4 in Pipe Size
$299.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics High Flow Oil Removing Coalescing Air Filter - 1-1/4 in Pipe Size
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

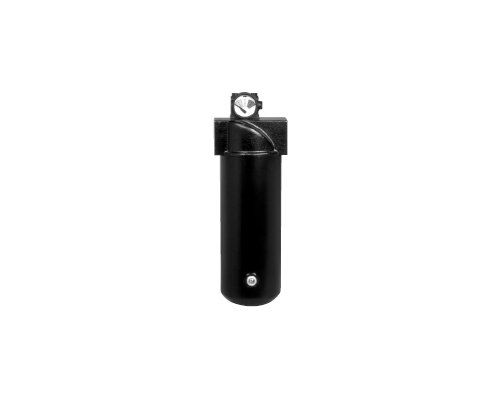

The Arrow Pneumatics High Flow Oil Removing Coalescing Air Filter in 1-1/4 inch Pipe Size is engineered for superior performance and efficiency. With a Maximum Flow of 420 scfm and a 0.9 micron borosilicate glass fiber element, this filter ensures 95% D.O.P. efficiency and particle removal, with only 2.5 PPM oil content remaining. Its black E coated aluminum body and plastic baffle ensure durability and reliable operation. Perfect for critical applications, this filter is a must-have for industries requiring high-filtration of oil aerosols and sub-micron particles.
Product Specifications
Features 0
0.9 micron elementLow pressure dropLong element lifeManual 1/4" twist drain
Kits Bowl Kits
Metal without sight F410 - BKF510Metal with sight F410 - BKF510WMetal without sight F418 - BKF518Metal with sight F418 - BKF518WMetal without sight F428 - BKF528Metal with sight F428 - BKF528W
Kits Element Kits
0.9 micron - EKF410, EKF418, EKF428
Kits Kits
Float for External Drain - 5200Drain Trap Kit - DKTF2
Kits Repair Kit
Repair kit - RKF511Replacement sight kit - BSF510
Note 0
Oil captured by Arrow Coalescing Filters will not retrain and move downstream.
Option 0
Add suffix to part number in alpha orderD - Differential pressure gauge - F410-08DT - External Float Drain - F410-08TW - Metal bowl with sight glass - F410-08W
Product Line Information 0
F4 oil removing filters offer general industrial filtration with low pressure drop and long element life. They are often used with older compressors where downstream oil carryover is excessive and when longer element life and low pressure drop are a concern.F5 coalescing filters are used for high filtration of oil aerosols and sub micron particles. They are often used with critical instrumentation; paint spraying equipment; more sophisticated air systems; blow molding bottling; in the food industry, and where air blows on a finished product. The 0.01 micron grade "A" element is offered for the most critical filtration applications, such as those found in clean rooms.F6 adsorber filters were engineered specifically for critical applications that will not tolerate the presence of oil vapors. If the compressed air has been prepared by a suitable refrigerated dryer and F5 oil removing filter, the F6 Adsorber will insure oil concentrations of 0.01 PPM by weight. In all cases, an F5A coalescing filter must precede an F6 Adsorber filter. To prevent any particle migration downstream, an F3 with 3 micron element should be installed downstream for total system protection.
Specifications Baffle Material
Plastic
Specifications Body
Black E Coated Aluminum
Specifications Bowl Capacity
100 oz
Specifications Brand
Arrow Pneumatics

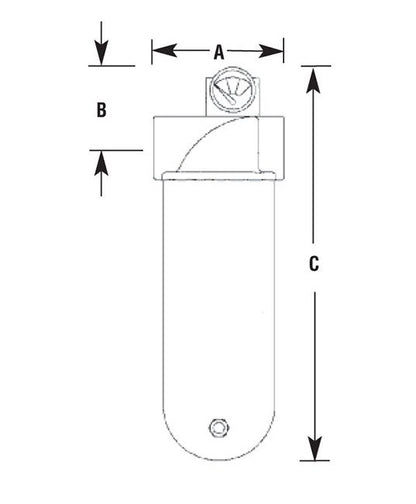

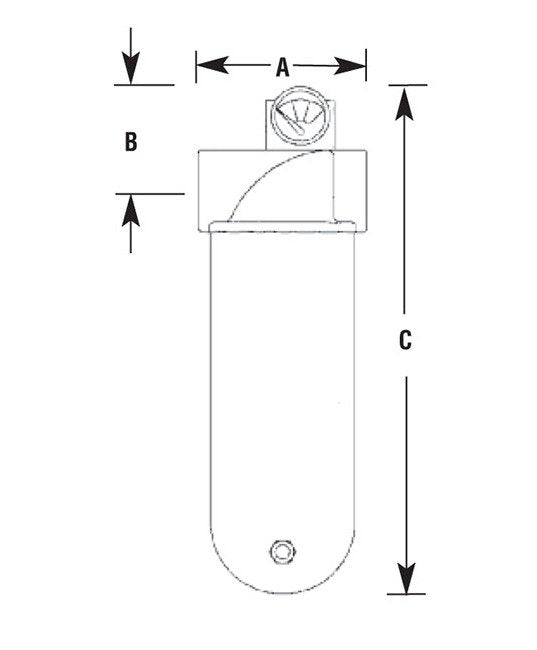

Specifications Dimension A
6-1/2 in
Specifications Dimension B
2 in
Specifications Dimension C
21 in
Specifications Elements
0.9 micron borosilicate glass fiber D.O.P. Efficiency: 95%, Particle size removal, Remaining oil content by wt.: 2.5 PPM
Specifications Maximum Flow
420 scfm
Specifications Maximum Supply Pressure For Metal Bowl
250 psig
Specifications Maximum Supply Pressure For Metal Bowl With Sight
250 psig
Specifications Metal Bowl Material With Sight
Black E Coated Aluminum

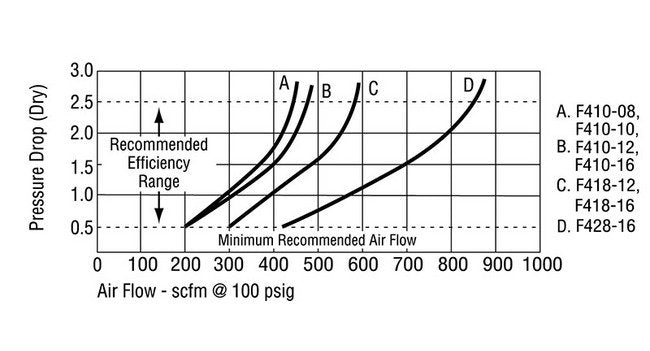

Specifications Note For Maximum Flow
Flow scfm based on 2.5 psi Δp at 100 psig inlet.
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Pipe Size
1-1/4 in
Specifications Seals
Buna N
Specifications Weight
16 lb
