Arrow Pneumatics High Flow Pressure Regulator - 1-1/2 Inch Pipe Size
Arrow Pneumatics High Flow Pressure Regulator - 1-1/2 Inch Pipe Size
SKU:ARR-681e7f
Enhance pneumatic device performance with the Arrow Pneumatics High Flow Pressure Regulator - 1-1/2 Inch Pipe Size. Maintains maximum efficiency and longevity.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Arrow Pneumatics High Flow Pressure Regulator - 1-1/2 Inch Pipe Size
$159.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics High Flow Pressure Regulator - 1-1/2 Inch Pipe Size
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

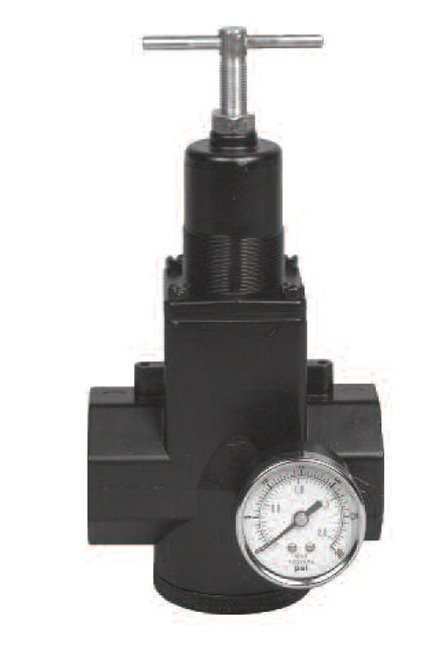

The Arrow Pneumatics 1-1/2 Inch Pipe Size High Flow Pressure Regulator is a premium regulator designed to optimize pneumatic device performance, ensuring efficiency and longevity. With a maximum flow rate of 700 ft³/min and a sturdy construction featuring Buna N Elastomer seals, brass seat, and aluminum body and bonnet, this regulator offers reliable pressure maintenance. It boasts micro finished brass seat technology to prevent pressure creep, a relieving style piston, and hard epoxy corrosion protection. Ideal for rigorous applications requiring constant pressure, this regulator complies with federal, GSA, DLA standards and FAR compliance factors, offering exceptional performance and durability for institutional buyers.
Product Specifications

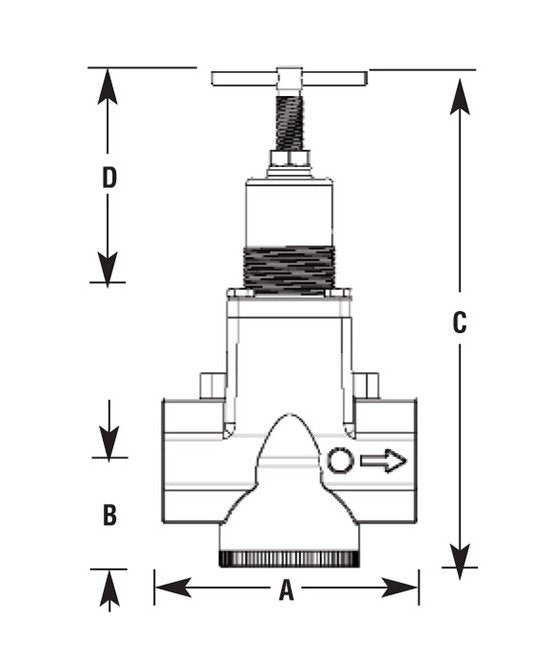

Dimensions Dimension A
4-7/8 in
Dimensions Dimension B
2-1/32 in
Dimensions Dimension C
9-1/2 in
Dimensions Dimension D
4-1/4 in
Dimensions Weight
3.2 lb
Features 0
Micro finished brass seat to ensure no reduced pressure creepRelieving style piston standardHigh scfm flow due to efficient aspirationHard epoxy corrosion protectionAvailable in 1", 1-1/4", 1-1/2" NPT sizes
Kits Bracket Kit
Bracket Kit - RBK39
Kits Mounting Kit
Panel mounting kit ring only panel hole size 1-3/16" - PKR35
Kits Repair Kit
Piston relieving - DK39Valve - VK39Spring (5-125 psi) - SK39Spring (3-60 psi) - SK39LSpring (10-200 psi) - SK39HSpring cage - SC39
Product Line Information 0
Arrow's quality Regulators include the Miniature Series which are high performance, low cost regulators for the O.E.M. market and low flow applications up to 25 scfm. Arrow's Tri-Star Series are compact, lightweight regulators engineered for superior performance in a wide range of applications where air flow does not exceed 100 scfm. Arrow's Midflow Series regulators are compact and available in 3/8", 1/2", 3/4" and 1" with air flows exceeding 200 SCFM. Arrow's High Flow Series heavy-duty regulators are for rigorous applications requiring constant pressure for flows up to 700 scfm.The General Purpose Precision Series features state-of-the-art engineering for precision control in critical tolerance applications. The Arrow Precision Regulator lineup can be tailored to fit your specific needs. All Arrow regulators are easily panel mounted. All Arrow regulators are designed with a micro seat finish to ensure no reduced pressure creep.
Specifications Body
Black E Coated Aluminum
Specifications Bonnet
Die Cast Aluminum, Black E Coated
Specifications Brand
Arrow Pneumatics
Specifications Gauge Port Size
1/4 in

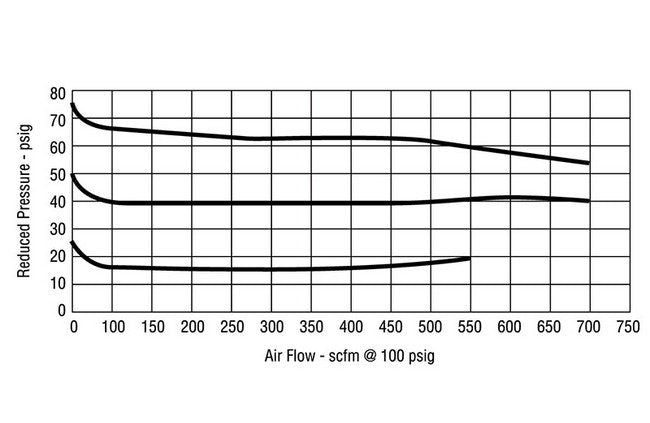

Specifications Maximum Flow
700 ft³/min
Specifications Operating Pressure Range
5 to 125 psig
Specifications Operating Temperature
40 to 120 ºF
Specifications Option
Add suffix to part number in alpha orderB - 2-Position mechanical Lock Knob - R162BG - Gauge (5-160 psi) - R162GI - Instrument pressure - R162I 3 to 20 psi adjustmentL - Low pressure - R162L 3 to 60 psi adjustmentN - Non-relieving - R1P - Panel mount - R162PU - No gauge ports - R162U
Specifications Pipe Size
1-1/2 in
Specifications Seals
Buna N Elastomer standard
Specifications Seat
Brass
Specifications Supply Pressure
250 psig
