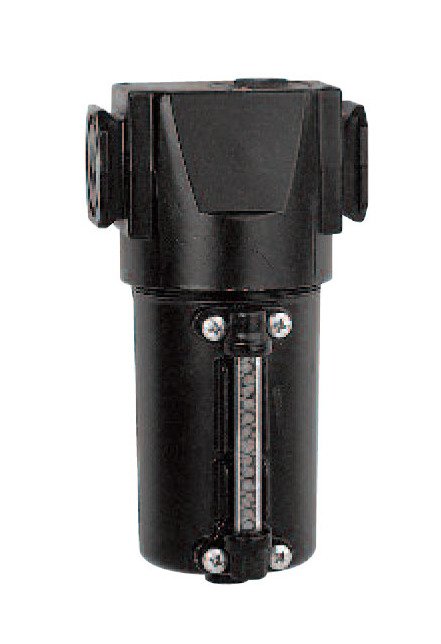

Arrow Pneumatics In-Line Desiccant Dryer - 0.5-5 scfm Flow Rate
Arrow Pneumatics In-Line Desiccant Dryer - 0.5-5 scfm Flow Rate
SKU:ARR-7b9127
Ensure dry and clean compressed air with Arrow Pneumatics In-Line Desiccant Dryer - 0.5-5 scfm flow rate. Compact, efficient, and maintenance-friendly.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Arrow Pneumatics In-Line Desiccant Dryer - 0.5-5 scfm Flow Rate
$189.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics In-Line Desiccant Dryer - 0.5-5 scfm Flow Rate
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics In-Line Desiccant Dryer is a high-performance solution for maintaining dry and clean compressed air in institutional settings. Designed with a 0.5 to 5 scfm flow rate, this dryer ensures maximum desiccant utilization, indicated by a color change from blue to pink, signifying the need for service. Its compact size, exclusive sight-glass visual indicator, and efficient design make it ideal for air gauging equipment, laboratory air, and paint spray systems. Regeneration process and prefiltering recommendations enhance longevity and protection.
Product Specifications
Additional Information 0
The color change works its way through the desiccant as the adsorbative qualities of the desiccant are diminished. Once the color change is visible through the exclusive sight dome (6), the full desiccant bed has reached its maximum drying capacity and must be either changed or regenerated. Dry air exits through the inside diameter of the intake tube (7) and out the outlet port of the unit (8).
Dimensions Desiccant Charge
10 oz
Dimensions Desiccant Weight
5/8 lb

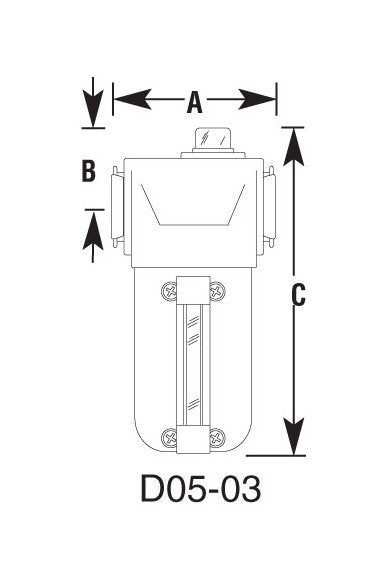

Dimensions Dimension A
3-3/4 in
Dimensions Dimension B
1-1/8 in
Dimensions Dimension C
8-1/4 in
Dimensions Maximum Flow
0.5 to 5 scfm | 830 ft³
Dimensions Note For Maximum Flow
SCFM and SCF based on 70 ºF inlet temperature at 100 psig
Dimensions Pipe Size
1/2 in
Dimensions Weight
2.7 lb
Features 0
Available in capacities from 0.5 to 50 scfmCompact sizes are ideal for portable or original equipmentDrying efficiency can be tailored to your needs down to -30 ºF pressure dew pointHighly visible color change from blue to pink through exclusive sight-glass highlights the need for serviceExclusive hard spherical bead resists attrition and dusting and can be rechargedExclusive intake flow design takes air through entire supply of desiccant for maximum drying capacityBuilt-in particulate after-filter prevents downstream dustNeeds no electrical connectionNo "purge air" lost as with regenerative dryers
Kits Bracket Mounting Kit
DBK10Check the exhaust element to avoid high pressure drop due to desiccant dust entrapment. We recommend replacement of the exhaust element.
Kits Element Kits
D05, D10 Use:Element Kit EKD10 (1-pack each)D10XL UseElement Kit EKD10XL (1-pack each)D25 Use: Element Kit EKD25 (1-pack each)
Kits Replacement Desiccant Kits
No. 34189 - 6 pack of 1 qt. jarsNo. 34417 - 4-1 gallon jugs
Product Line Information Adsorption
Adsorption means the attraction of a substance - the adsorbate - to, and its subsequent accumulation on, the surface of a solid material - the adsorbent - which is caused by physical forces of attraction. Adsorbents are substances which are permeated by a large number of very fine pores which give rise to a large internal surface area. This, in turn, determines the adsorption capacity of the adsorbent, since a large internal surface can accommodate more adsorbate. Other factors which influence the amount of adsorbate are: temperature, relative humidity and pressure.
Product Line Information Regeneration Process
Regeneration is accomplished by heating the desiccant to a temperature of 275 ºF in a drying oven. Regeneration is complete when the desiccant returns to its blue color.For extended life and protection of the desiccant and equipment being serviced, an F3 Prefilter and F5 Coalescing filter should be used as a prefiltering system ahead of the dryer.
Specifications Applications
Air Gauging Equipment | Always Install an F5 Coalescing Filter Upstream of the D05, D10 and D25 | Dry Air for Parts Blow Off | For Compressed Air Service Only | Laboratory Air | Not to Be Used on Life Support Systems or Breathing Air Systems | Paint Spray Systems
Specifications Bowl
D05-03: Metal with sight gauge
Specifications Bowl Kits
BKD05W-1BKD10BKD10XLBKD25
Specifications Brand
Arrow Pneumatics
Specifications Desiccant
Silica Gel
Specifications Maximum Pressure
250 psig
Specifications Operating Temperature
0 to 120 ºF
