Arrow Pneumatics Miniature Air Pressure Regulator 1/4" Pipe Size
Arrow Pneumatics Miniature Air Pressure Regulator 1/4" Pipe Size
SKU:ARR-d236ee
Optimize pneumatic system pressure with Arrow's Miniature Air Pressure Regulator. Precision control and durability in a compact design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Arrow Pneumatics Miniature Air Pressure Regulator 1/4" Pipe Size
$49.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics Miniature Air Pressure Regulator 1/4" Pipe Size
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

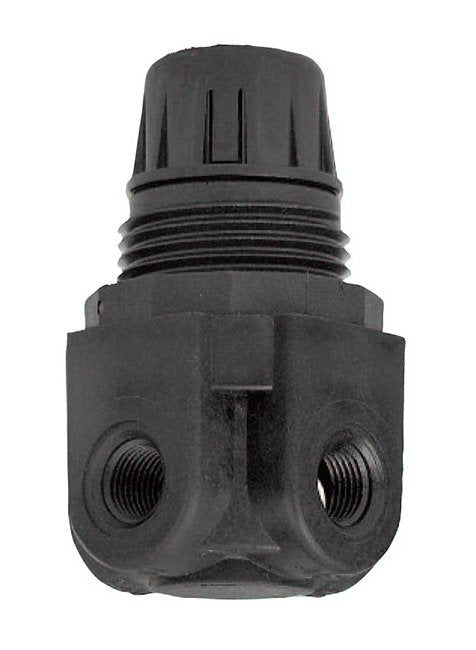

The Arrow Pneumatics 1/4 Inch Miniature Air Pressure Regulator is a high-performance device designed to ensure optimal pressure control for pneumatic systems. Featuring a durable construction with Glass Filled Nylon body and bonnet, Buna N seals, and a supply pressure of 250 psig, this regulator maintains pressure levels between 5 to 125 psig, with optional ranges of 3 to 20 psig or 3 to 60 psig. Ideal for OEM markets and low flow applications, this lightweight regulator offers precision control with a micro seat finish, a relieving style standard, and a tamper-proof cap for added security.
Product Specifications

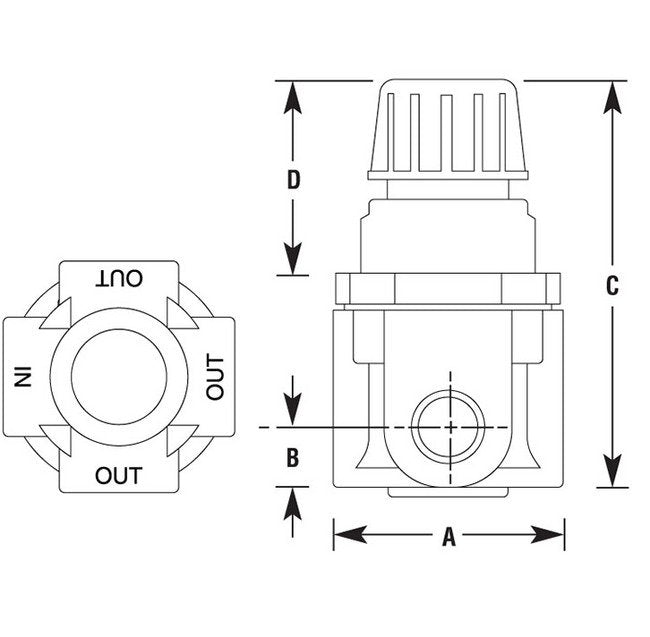

Dimensions Dimension A
1-1/2 in
Dimensions Dimension B
1/2 in
Dimensions Dimension C
2-3/4 in
Dimensions Dimension D
1-1/4 in
Dimensions Weight
2 oz
Features 0
Micro seat finish to ensure no reduced pressure creepDiaphragm operationRelieving style standardThree position non-rising adjustment knob; push to lock, pull to adjust, detach to make tamper resistantEasily panel mountedTamper-proof cap includedLightweight
Kits Bracket Kit
Bracket and Ring - BR1611
Kits Diaphragm Kit
Relieving - RK260Non-Relieving - RK260N
Kits Panel Mounting Kit
Ring only, panel hole size 1-3/16 in. - PK1611
Product Line Information 0
Arrow's quality Regulators include the Miniature Series which are high performance, low cost regulators for the O.E.M. market and low flow applications up to 25 scfm. Arrow's Tri-Star Series are compact, lightweight regulators engineered for superior performance in a wide range of applications where air flow does not exceed 100 scfm. Arrow's Midflow Series regulators are compact and available in 3/8", 1/2", 3/4" and 1" with air flows exceeding 200 SCFM. Arrow's High Flow Series heavy-duty regulators are for rigorous applications requiring constant pressure for flows up to 700 scfm.The General Purpose Precision Series features state-of-the-art engineering for precision control in critical tolerance applications. The Arrow Precision Regulator lineup can be tailored to fit your specific needs. All Arrow regulators are easily panel mounted. All Arrow regulators are designed with a micro seat finish to ensure no reduced pressure creep.
Specifications Applications
Non-Relieving Diaphragm Can Be Used on Liquid Applications
Specifications Body
Glass Filled Nylon
Specifications Bonnet
Glass Filled Nylon
Specifications Brand
Arrow Pneumatics

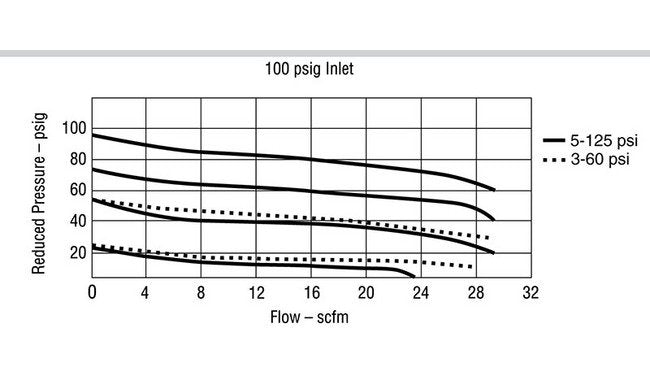

Specifications Maximum Flow
25 ft³/min
Specifications Operating Temperature
40 to 120 ºF
Specifications Option
Add suffix to part number in alpha orderB - 2-Position mechanical Lock Knob - R162BG - Gauge (5-160 psi) - R162GI - Instrument pressure - R162I 3 to 20 psi adjustmentL - Low pressure - R162L 3 to 60 psi adjustmentN - Non-relieving - R1P - Panel mount - R162PU - No gauge ports - R162U
Specifications Optional Operating Pressure Range
3 to 20 psig | 3 to 60 psig
Specifications Pipe Size
1/4 in
Specifications Seals
Buna N
Specifications Standard Full Flow Gauge Port Size
1/8 in
Specifications Standard Operating Pressure Range
5 to 125 psig
Specifications Supply Pressure
250 psig
