Arrow Pneumatics Miniature Air Pressure Regulator - 1/8 in Pipe Size
Arrow Pneumatics Miniature Air Pressure Regulator - 1/8 in Pipe Size
SKU:ARR-165b17
Enhance device efficiency with Arrow Pneumatics Mini Air Pressure Regulator - 1/8 in Pipe Size. Durable construction, precise pressure control, ideal for OEM & low-flow applications.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Arrow Pneumatics Miniature Air Pressure Regulator - 1/8 in Pipe Size
$42.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics Miniature Air Pressure Regulator - 1/8 in Pipe Size
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

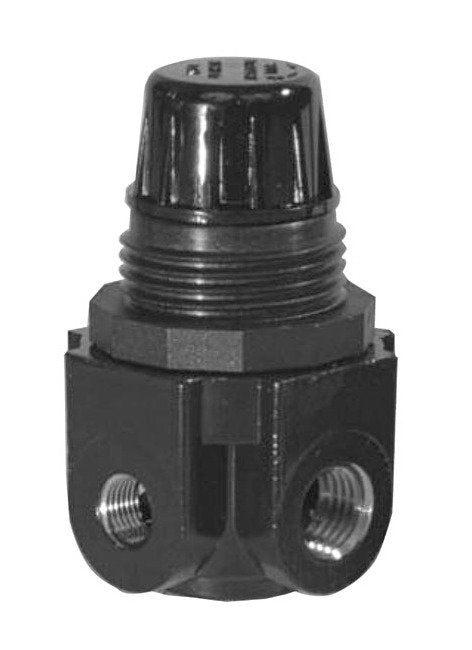

The Arrow Pneumatics 1/8 Inch Miniature Air Pressure Regulator is a high-performance solution designed to optimize the efficiency and lifespan of pneumatic devices. With a body crafted from Zinc with Black E Coating and a Bonnet made of Glass Filled Nylon, this regulator ensures durability and reliable operation. Featuring Buna N seals and a supply pressure of 250 psig, it offers precise pressure control within a standard operating range of 5 to 125 psig. The regulator includes a reliving style diaphragm operation, a tamper-resistant adjustment knob, and is easily panel mounted for convenience. Ideal for OEM and low-flow applications, this regulator meets the stringent quality standards demanded by institutions and government bodies.
Product Specifications

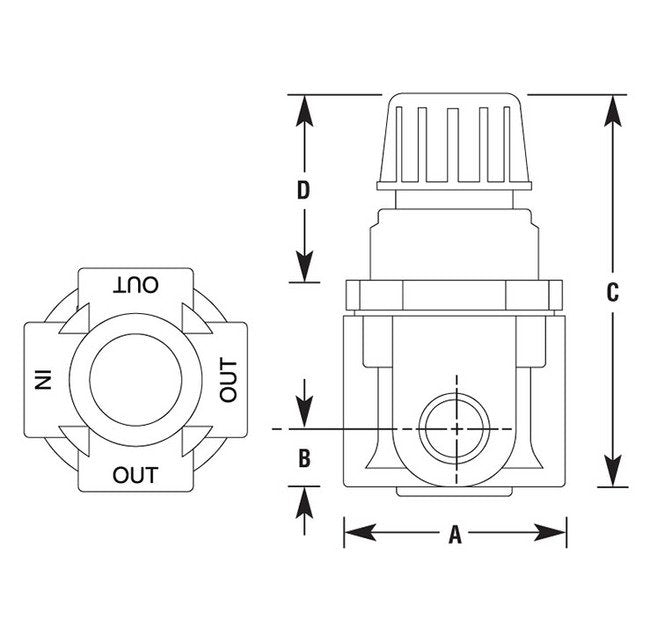

Dimensions Dimension A
1-1/2 in
Dimensions Dimension B
1/2 in
Dimensions Dimension C
2-3/4 in
Dimensions Dimension D
1-1/4 in
Dimensions Weight
6 oz
Features 0
Micro seat finish to ensure no reduced pressure creepDiaphragm operationRelieving style standardThree position non-rising adjustment knob; push to lock, pull to adjust, detach to make tamper resistantEasily panel mountedTamper-proof cap included
Kits Bracket Kit
Bracket and Ring - BR1611
Kits Diaphragm Kit
Relieving - RK260Non-Relieving - RK260N
Kits Panel Mounting Kit
Ring only, panel hole size 1-3/16 in. - PK1611
Product Line Information 0
Arrow's quality Regulators include the Miniature Series which are high performance, low cost regulators for the O.E.M. market and low flow applications up to 25 scfm. Arrow's Tri-Star Series are compact, lightweight regulators engineered for superior performance in a wide range of applications where air flow does not exceed 100 scfm. Arrow's Midflow Series regulators are compact and available in 3/8", 1/2", 3/4" and 1" with air flows exceeding 200 SCFM. Arrow's High Flow Series heavy-duty regulators are for rigorous applications requiring constant pressure for flows up to 700 scfm.The General Purpose Precision Series features state-of-the-art engineering for precision control in critical tolerance applications. The Arrow Precision Regulator lineup can be tailored to fit your specific needs. All Arrow regulators are easily panel mounted. All Arrow regulators are designed with a micro seat finish to ensure no reduced pressure creep.
Specifications Body
Zinc, Black E Coated
Specifications Bonnet
Glass Filled Nylon
Specifications Brand
Arrow Pneumatics
Specifications Maximum Flow
25 ft³/min
Specifications Operating Temperature
40 to 120 ºF
Specifications Option
Add suffix to part number in alpha orderB - 2-Position mechanical Lock Knob - R162BG - Gauge (5-160 psi) - R162GI - Instrument pressure - R162I 3 to 20 psi adjustmentL - Low pressure - R162L 3 to 60 psi adjustmentN - Non-relieving - R1P - Panel mount - R162PU - No gauge ports - R162U
Specifications Optional Operating Pressure Range
3 to 20 psig | 3 to 60 psig
Specifications Pipe Size
1/8 in
Specifications Seals
Buna N
Specifications Standard Full Flow Gauge Port Size
1/8 in
Specifications Standard Operating Pressure Range
5 to 125 psig
Specifications Supply Pressure
250 psig
