Arrow Pneumatics StageAir Drying System - 25-50 scfm
Arrow Pneumatics StageAir Drying System - 25-50 scfm
SKU:ARR-a9c5d2
Efficiently filter and dry compressed air with Arrow Pneumatics StageAir Drying System - perfect for precision parts protection and clean air output.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Arrow Pneumatics StageAir Drying System - 25-50 scfm
$399.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics StageAir Drying System - 25-50 scfm
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

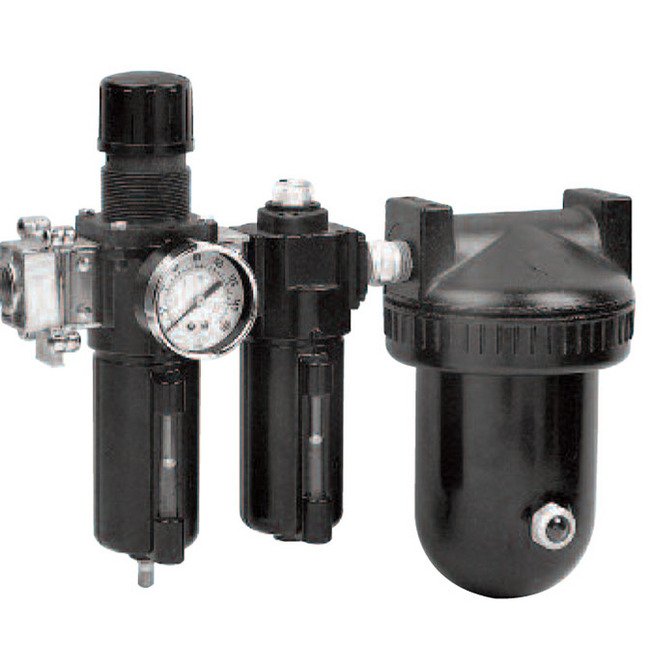

The Arrow Pneumatics StageAir Drying System provides efficient point-of-use drying for compressed air systems. Featuring a sturdy construction with dimensions of 16-1/2 x 4 x 20-1/8 inches and a weight of 24.25 lbs, this system efficiently filters and dries air, safeguarding precision parts with its dual-stage integral filter/regulator. With a desiccant weight of 6 lbs and the ability to remove corrosive moisture, dirt, and rust, it ensures clean, dry air output at a maximum flow of 50 scfm. Suitable for various applications like air gauging equipment and paint spray systems, this system is a reliable solution for your compressed air needs.
Product Specifications

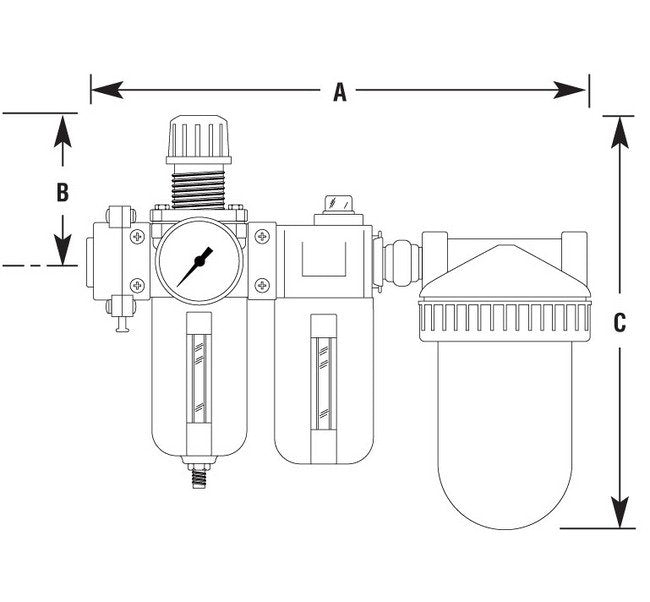

Dimensions Desiccant Weight
6 lb
Dimensions Dimension A
16-1/2 in
Dimensions Dimension B
4 in
Dimensions Dimension C
20-1/8 in
Dimensions Maximum Flow
25 to 50 scfm | 12500 ft³
Dimensions Note For Maximum Flow
SCFM and SCF based on 70 ºF inlet temperature at 100 psig
Dimensions Pipe Size
3/4 in
Dimensions Weight
24.25 lb
How It Works First And Second Stage
The StageAir desiccant air drying system begins with the dual stage integral filter/regulatorFirst, the air enters the particulate filter, which has a 5 micron cleanable sintered bronze element. In this stage, corrosive moisture, pipe scale, dirt and rust are removed from the air line protecting the precision parts in the regulator.Next, the air enters a high-performance regulator, which reduces primary pressure to a desired pressure setting.
How It Works Fourth Stage Desiccant Air Dryer
As the air enters the desiccant dryer, it is dispersed through a 70 micron element. The element distributes air evenly through the desiccant bed. The desiccant absorbs the water vapor from the air, producing a -40 ºF pressure dew point.To remove traces of desiccant dust before the air leaves the system, the air passes through a 40 micron filter element. The air is now clean and dry, and has been properly treated for use with your air operated system.The clear indicator sight glass shows a color change in the desiccant from blue to pink which indicates a desiccant recharge.
How It Works Third Stage Coalescing Filter
During Stage 3, fine filtration takes place. Here, 99.99 percent of oil aerosols and microscopic particles down to 0.01 micron absolute are removed from the air. The pop-up indicator alerts customer that an element change is necessary.
Kits Desiccant Kit
6-Pk. of 1 Qt. Jars - 341894-1 Gal. Jugs - 34417
Kits Element Kits
5 micron - EK35-50.01 micron - EK55A
Kits Kits
Internal Float Drain - 5200
Kits Mounting Kit
Mounting Kit - ABK-10
Note 0
When pressurizing, open slide valve slowly to prevent element burst.
Specifications Applications
Air Gauging Equipment | Lab Air | Paint Spray Systems
Specifications Brand
Arrow Pneumatics
Specifications Option
To order options for the VC7500 series, simply add the appropriate suffix, as listed below, to the part number in the alphabetical/ numerical order.3 - 3 micron absolute element (particulate filter)F - Float drainJ - Overnight Drain
