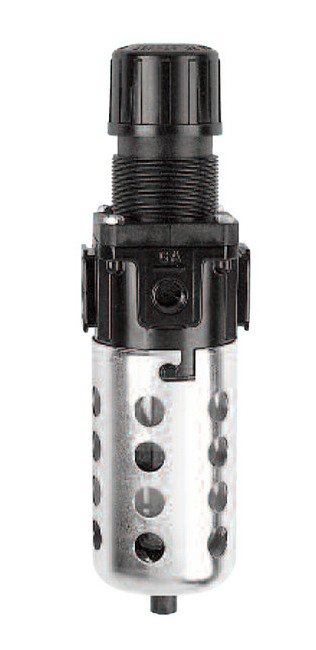

Arrow Pneumatics Tri-Star Integral Pressure Regulator, 3/8 in
Arrow Pneumatics Tri-Star Integral Pressure Regulator, 3/8 in
SKU:ARR-99fd03
Enhance device performance with Arrow Pneumatics' 3/8 in Tri-Star Integral Pressure Regulator. Optimal pressure control for longevity and efficiency.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Arrow Pneumatics Tri-Star Integral Pressure Regulator, 3/8 in
$89.99
Quantity: 1
Claim Your Seller Account
Arrow Pneumatics Tri-Star Integral Pressure Regulator, 3/8 in
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Arrow Pneumatics Tri-Star Integral Pressure Regulator in 3/8 inch size is engineered to ensure optimal performance and longevity of pneumatic devices. This regulator reduces and maintains pressure levels accurately, preventing excess torque, force, and air wastage. With a maximum flow of 80 ft³/min, durable aluminum body, Buna N elastomer seals, and precise control features, this regulator guarantees efficient and reliable operation. From its tamper-proof design to its robust construction, this product is a high-quality solution for maintaining ideal pressure levels, enhancing device lifespan, and reducing operational costs.
Product Specifications

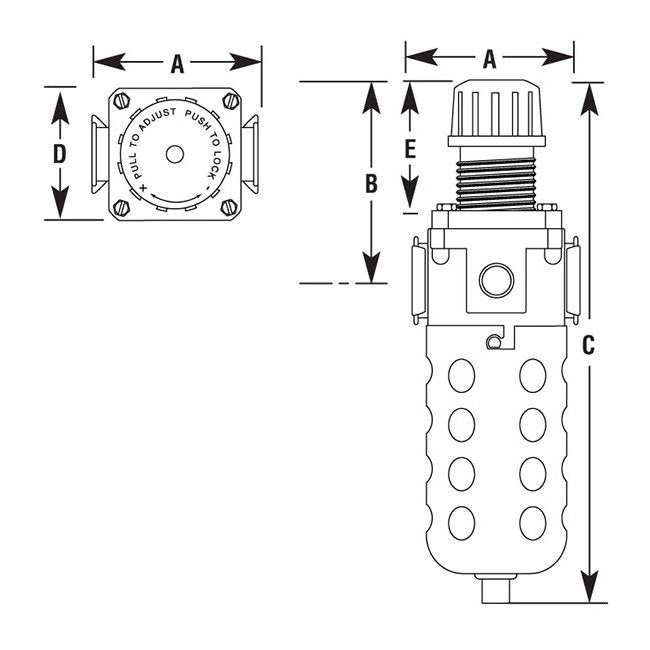

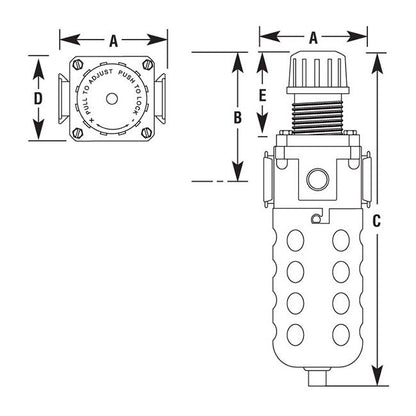

Dimensions Dimension A
2-21/32 in
Dimensions Dimension B
4-5/32 in
Dimensions Dimension C
9-3/4 in
Dimensions Dimension D
2-1/4 in
Dimensions Dimension E Width
2-3/4 in
Dimensions Weight
1.75 lb
Features 0
40 micron elementManual drainRelieving regulatorZero creep, machined brass valve seat3-position, non-rising adjustment knobTamper-proof cap included
Kits Bowl Kits
Polycarbonate - BKF35Metal - BKF45MMetal with sight - BKF45W
Kits Diaphragm Kit
Relieving - DK35
Kits Element Kits
40 micron 2-pack - EK355 micron 2-pack - EK35-53 micron absolute 2-pack - EK35-3
Kits Kits
Internal Float Drain - 5200
Kits Mounting Kit
Mounting bracket - RBK5Panel mount nut - PKR35Bracket & nut - PMKR35
Product Line Information 0
Arrow's quality Regulators include the Miniature Series which are high performance, low cost regulators for the O.E.M. market and low flow applications up to 25 scfm. Arrow's Tri-Star Series are compact, lightweight regulators engineered for superior performance in a wide range of applications where air flow does not exceed 100 scfm. Arrow's Midflow Series regulators are compact and available in 3/8", 1/2", 3/4" and 1" with air flows exceeding 200 SCFM. Arrow's High Flow Series heavy-duty regulators are for rigorous applications requiring constant pressure for flows up to 700 scfm.The General Purpose Precision Series features state-of-the-art engineering for precision control in critical tolerance applications. The Arrow Precision Regulator lineup can be tailored to fit your specific needs. All Arrow regulators are easily panel mounted. All Arrow regulators are designed with a micro seat finish to ensure no reduced pressure creep.
Specifications Body
Black E Coated Aluminum
Specifications Bonnet
Glass Filled Nylon
Specifications Bowl Capacity
5 oz
Specifications Brand
Arrow Pneumatics
Specifications Material For Internal Float Drain
Brass | Buna N Seal | Metal | Plastic

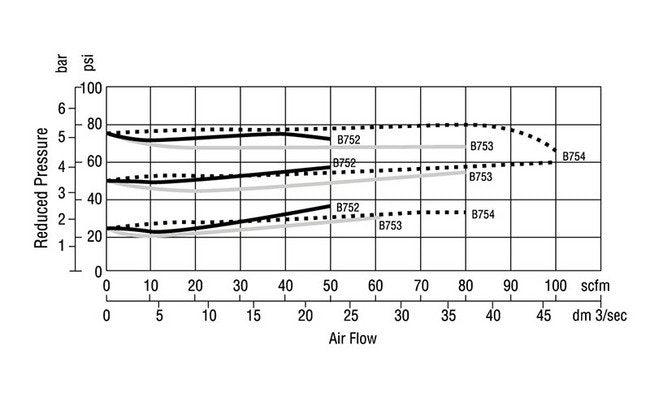

Specifications Maximum Flow
80 ft³/min
Specifications Maximum Pressure For Metal Bowl
200 psig
Specifications Maximum Pressure For Metal Bowl With Sight Gauge
200 psi
Specifications Maximum Pressure For Polycarbonate Bowl
150 psig
Specifications Metal Bowl Material
Zinc, Black E Coated
Specifications Note For Internal Float Drain
Limits bowl temperature and pressure rating.
Specifications Operating Pressure Range For Internal Float Drain
30 to 175 psi
Specifications Operating Pressure Range For Metal Bowl
5 to 125 psig
Specifications Operating Pressure Range For Polycarbonate Bowl
5 to 125 psig
Specifications Operating Temperature Range For Internal Float Dr
40 to 125 ºF
Specifications Operating Temperature Range For Metal Bowl
40 to 160 ºF
Specifications Operating Temperature Range For Metal Bowl With S
40 to 160 ºF
Specifications Operating Temperature Range For Polycarbonate Bow
40 to 125 ºF
Specifications Option
Add suffix to part number in alpha orderB - 2-Position mechanical Lock Knob - R162BG - Gauge (5-160 psi) - R162GI - Instrument pressure - R162I 3 to 20 psi adjustmentL - Low pressure - R162L 3 to 60 psi adjustmentN - Non-relieving - R1P - Panel mount - R162PU - No gauge ports - R162U
Specifications Pipe Size
3/8 in
Specifications Seals
Buna N Elastomer standard
Specifications Warning
Polycarbonate plastic bowls could rupture if exposed to incompatible chemicals whether inside or outside the bowl. If such chemicals are present, use a metal bowl.
