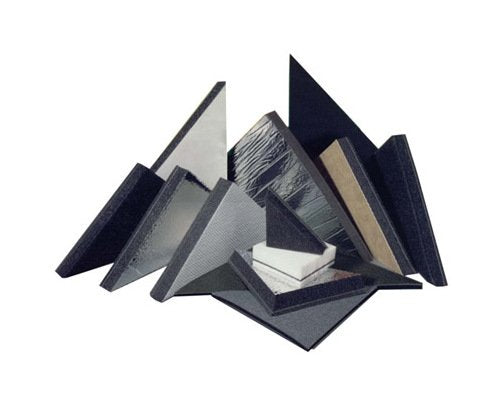

Art-Mat acoustical foams are designed to provide maximum absorption of airborne sound with minimum thickness and weight. These flexible polyurethane open cell foam products are manufactured to optimize pore size, air flow resistance and density.
Product Specifications
Note
Sound energy, passing through the cell structure, is converted into minute quantities of low grade heat that is easily dissipated. Since the uniformity of the cells are carefully controlled the efficiency is constant and predictable from one installation to another.Many applications require these products to be subjected to environments such as dirt, moisture, chemicals and abrasion that could be hostile to an unprotected foam. ArtUSA® industries has developed various surface treatments to protect the integrity of the foam from these elements. These facings will increase the absorption properties at certain frequencies as well as provide a cleanable, decorative and durable finish for a wide variety of applications.Art-Mat foams can be purchased in rolls or sheets and can be die cut or fabricated to customer specifications. They are easily cut with a knife, saw or scissors. The addition of pressure sensitive adhesive provides a convenient method of fastening to most substrates. All Art-Mat products can be made in combination with Art-Composite barrier systems when both absorption and transmission loss is needed or VETM damping systems, when enhanced vibration control is required.
Sound Transmission Coefficient In Db At Hertz Hz Sound Absorptio
0.77 dB
Specifications Chemical Resistance
Good for common fluids, water, petroleum, solvents and alkalis. Swelling will occur, will return to almost 100% after drying.
Specifications Color
Charcoal Gray
Specifications Compression Set
50 %, Deflection Maximum 10 % per ASTM D357-86 Test D
Specifications Continuous Composite Temperature Range
-40 to 225 ºF
Specifications Density
64 kg/m³ ±10 % per ASTM D3574-86 Test A | 4 lb/ft³ ±10 % per ASTM D3574-86 Test A | 2 lb/ft³ | 32 kg/m³
Specifications Elongation
120 % per ASTM D3574-86 Test E
Specifications Flammability
MVSS 302, UL-94 HF1, and FAR 25.853 (b)
Specifications Foam Thickness
1/4 to 2 in
Specifications Heat Resistance
Retention of tensile strength after 22 hours dry heat aging at 140 ºC minute 70% (ASTM D3574-86 test K)
Specifications Humidity Resistance
Retention of tensile strength after 6 hours, steam autoclave at 105 ºC minute 70% (ASTM D3574-86 test J)
Specifications Intermittent Temperature Range
275 ºF
Specifications Other Specifications
Fabricated and Die Cut Parts
Specifications Pressure Sensitive Adhesive
Supported SBR (temps to 140 ºF)Unsupported Acrylic (temps to 250º)Supported Acrylic (temps to 250º)
Specifications Standard Roll Size
54 in x 50 ft
Specifications Standard Sheet Size
54 x 24 in | 54 x 36 in | 54 x 72 in

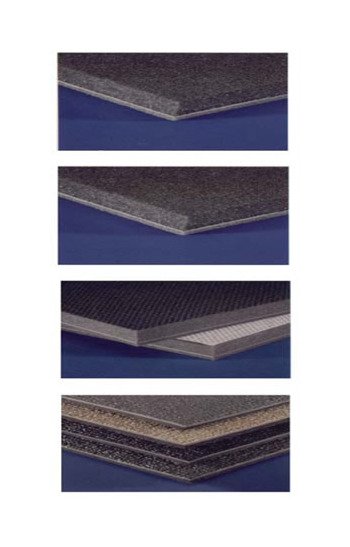

Specifications Standard Surface Treatments
Aluminized PolyesterReinforced Aluminized PolyesterUrethane Films (matte or impervious)Tedla (Trademark E.I. Dupont Co.)Perforated VinylConvolutedEmbossed Customized Facings
Specifications Tear Strength
1.5 ppi per ASTM D3574-86 test F
Specifications Tensile Strength
20 psi per (ASTM D3574-86 Test E)
Specifications Thermal Conductivity Per Astm C177
0.25 Btu/(h·ft²·ºF)
Specifications Thickness
1-1/2 in
