Articulating Jib Crane - Ceiling Mounted AJ360-C Series
Articulating Jib Crane - Ceiling Mounted AJ360-C Series
SKU:AJ3-03cc02
Enhance workflow efficiency with the AJ360-C Series Ceiling Mounted Articulating Jib Cranes. Precision, strength, and versatility in one solution.
Regular price
$4,599.99
Regular price
Sale price
$4,599.99
Unit price
per
Initiate Order
Articulating Jib Crane - Ceiling Mounted AJ360-C Series
$4,599.99
Quantity: 1
Claim Your Seller Account
Articulating Jib Crane - Ceiling Mounted AJ360-C Series
$4,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AJ360-C Series Ceiling Mounted Articulating Jib Cranes provide a seamless overhead lifting solution for industrial environments. With a capacity of 1000 lb and a 360° rotation angle, these cranes offer easy movement and precise positioning of heavy loads. Gorbel's Advantage includes easy load movement, precise load positioning, and a wide variety of spans and capacities without customization delays. Ideal for reaching in, around, and under obstructions, these jib cranes ensure efficient and safe material handling across multiple work cells with just one crane and lifting device.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Ideal for reaching in, around and underGorbel® Articulating Jib Cranes can position loads in places you cannot reach with traditional jibs. They provide easy rotation and consistent responsiveness when positioning loads throughout the craneâs coverage area. Gorbel® Wall/Column Mounted Articulating Jibs can handle up to 200º rotation for the primary boom and up to 360º for the secondary boom. Gorbelâs Free Standing and Ceiling Mounted Articulating Jibs can rotate up to 360º on the primary and secondary booms.
General Information 0
Easy Movement Throughout The Coverage AreaWith a traditional jib crane, placement near the mast of the jib becomes difficult due to the weight of the jib boom.The articulating arm allows easy movement of the load throughout the coverage area.
Gorbels Advantage 0
Easy MovementTraditional jib cranes can be difficult to rotate when the load is on the inner half of the boom. The articulating jibs are easier to rotate in close to the free standing mast or building column.Precise Load PositioningGorbel® Articulating Jib Cranes are A Class Above⢠when it comes to positioning and spotting loads around an obstruction, through an open doorway, or rotating in close to the free standing mast or building column.Wide Variety of Spans and CapacitiesGorbel® Articulating Jib Cranes are available as standard products in capacities up to 2000 lb. and spans up to 16' without the extra lead time and costs associated with customization.
Note 0
Additional Sizes and Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Base Price Includes: jib boom, jib arm, friction brakes, and clevis assembly for hook mounted lifting devices (lifting device by others). AJ360-C price includes the assembly for ceiling mounting (anchor bolts by others). Festooning is optional.Dimensions are for reference only and are subject to change without notice.
Specifications Anchor Bolt Load
5590 lb
Specifications Bolt Circle
10-3/4 in
Specifications Bolt Quantity
8
Specifications Capacity
1000 lb
Specifications Diameter
3/4 in | 1 in

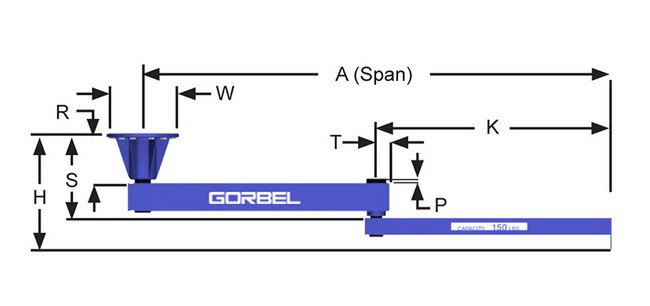

Specifications Dimension H
37-11/16 in
Specifications Dimension K
48 in
Specifications Dimension P
1-11/16 in
Specifications Dimension R
16-3/8 in
Specifications Dimension S
29-3/16 in
Specifications Dimension T
4-15/16 in
Specifications Dimension W
16 in
Specifications Mounting Plate Thickness For 500 Lb
10 ft
Specifications Mounting Style
Ceiling Mounted Style
Specifications Otm
15.99 kip.ft
Specifications Rotation Angle
360 º
Specifications Span
1-1/2 in
Specifications Span A
10 ft
Specifications Weight
780 lb
