Articulating Jib Cranes AJ360-C Series
Articulating Jib Cranes AJ360-C Series
SKU:AJ3-610213
Versatile Articulating Jib Cranes for precise load positioning and efficient workflow. Easy movement and multiple work cell coverage.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Articulating Jib Cranes AJ360-C Series
$5,999.99
Quantity: 1
Claim Your Seller Account
Articulating Jib Cranes AJ360-C Series
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Articulating Jib Cranes AJ360-C Series are versatile solutions for both consumer and institutional buyers, providing a capacity of 2000 lb and a 360-degree rotation angle for precise load positioning. With dimensions tailored for efficient workflow, these ceiling-mounted cranes offer easy movement and cover multiple work cells with just one crane. Gorbel's Advantage includes easy load movement, precise positioning, and a wide variety of spans and capacities without customization costs. Ideal for reaching in, around, and under, these cranes facilitate load positioning in hard-to-reach areas and offer consistent responsiveness throughout the coverage area.
Product Specifications
Additional Information 0
Ideal for reaching in, around and underGorbel® Articulating Jib Cranes can position loads in places you cannot reach with traditional jibs. They provide easy rotation and consistent responsiveness when positioning loads throughout the craneâs coverage area. Gorbel® Wall/Column Mounted Articulating Jibs can handle up to 200º rotation for the primary boom and up to 360º for the secondary boom. Gorbelâs Free Standing and Ceiling Mounted Articulating Jibs can rotate up to 360º on the primary and secondary booms.
General Information 0
Easy Movement Throughout The Coverage AreaWith a traditional jib crane, placement near the mast of the jib becomes difficult due to the weight of the jib boom.The articulating arm allows easy movement of the load throughout the coverage area.
Gorbels Advantage 0
Easy MovementTraditional jib cranes can be difficult to rotate when the load is on the inner half of the boom. The articulating jibs are easier to rotate in close to the free standing mast or building column.Precise Load PositioningGorbel® Articulating Jib Cranes are A Class Above⢠when it comes to positioning and spotting loads around an obstruction, through an open doorway, or rotating in close to the free standing mast or building column.Wide Variety of Spans and CapacitiesGorbel® Articulating Jib Cranes are available as standard products in capacities up to 2000 lb. and spans up to 16' without the extra lead time and costs associated with customization.
Note 0
Additional Sizes and Capacities Readily AvailableOther spans and capacities are available by contacting your local Gorbel® dealer.Base Price Includes: jib boom, jib arm, friction brakes, and clevis assembly for hook mounted lifting devices (lifting device by others). AJ360-C price includes the assembly for ceiling mounting (anchor bolts by others). Festooning is optional.Dimensions are for reference only and are subject to change without notice.
Specifications Anchor Bolt Load
6730 lb
Specifications Bolt Circle
13 in | 15-1/2 in
Specifications Bolt Quantity
8
Specifications Capacity
2000 lb
Specifications Diameter
1 in | 1-1/4 in

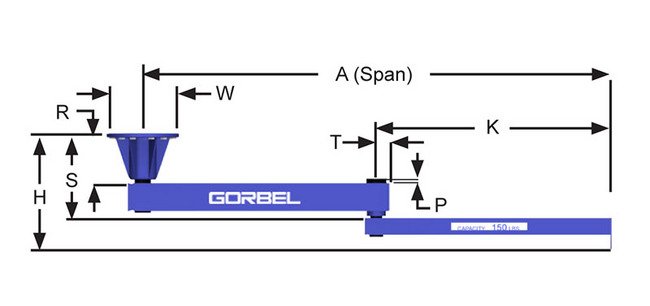

Specifications Dimension H
39-1/8 in
Specifications Dimension K
36 in
Specifications Dimension P
1-11/16 in
Specifications Dimension R
17-13/16 in
Specifications Dimension S
30-5/8 in
Specifications Dimension T
4-15/16 in
Specifications Dimension W
20 in
Specifications Mounting Plate Thickness For 500 Lb
10 ft
Specifications Mounting Style
Ceiling Mounted Style
Specifications Otm
23.84 kip.ft
Specifications Rotation Angle
360 º
Specifications Span
1-1/2 in
Specifications Span A
8 ft
Specifications Weight
850 lb
