ASC Series Aluminum Caps for Threaded Flared Fittings

Name: ASC Series Aluminum Caps for Threaded Flared Fittings
Brand: Arizona Sealing Devices, Inc.
SKU: CAP-a274fd
Price: 14.99 USD
Availability: OutOfStock

SKU:CAP-a274fd

ASC Series Aluminum Caps - Protect threaded, flared fittings with precision seal. Conforms to MIL-C-5501/3, NAS standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

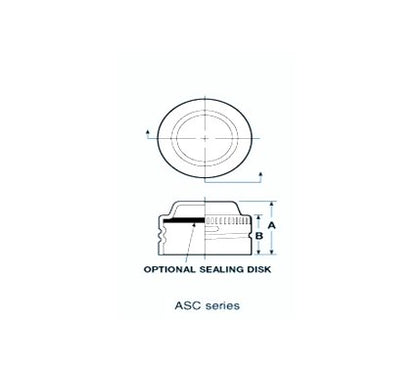

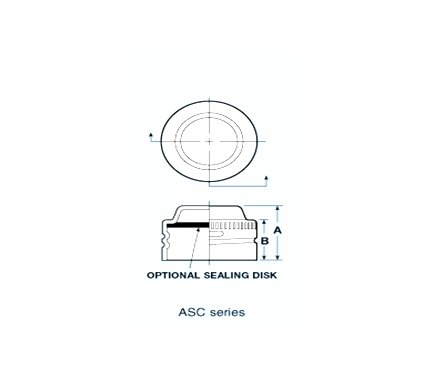

The ASC Series Aluminum Caps are expertly designed for aerospace and fluid power applications, providing a protective seal on threaded, flared fittings. Made from 3003-0 Aluminum Alloy, these caps feature a nose section design for a low-pressure seal. Enhance the seal further by adding neoprene, Butyl, or Buna N rubber sealing discs (Series ASC-DN). With dimensions of 0.870 in (A) and 0.710 in (B), these caps fit tube sizes of 1 1/4 in and thread sizes of 1 5/8"-12 in. Compliant with MIL-C-5501/3, NAS-817, and NAS-83 specifications, these caps ensure reliability and performance for various applications.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/3 | NAS-817 | NAS-83

Specifications Color

Natural (silver)

Specifications Dimension A

0.870 in

Specifications Dimension B

0.710 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

1 5/8"-12 in

Specifications To Fit Tube Size

1 1/4 in

ASC Series Aluminum Caps for Threaded Flared Fittings
