ASC Series Aluminum Caps for Threaded Flared Fittings

Name: ASC Series Aluminum Caps for Threaded Flared Fittings
Brand: Arizona Sealing Devices, Inc.
SKU: CAP-745e14
Price: 12.99 USD
Availability: OutOfStock

SKU:CAP-745e14

ASC Series Aluminum Caps for Threaded Flared Fittings ensure precise sealing in aerospace and fluid power applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

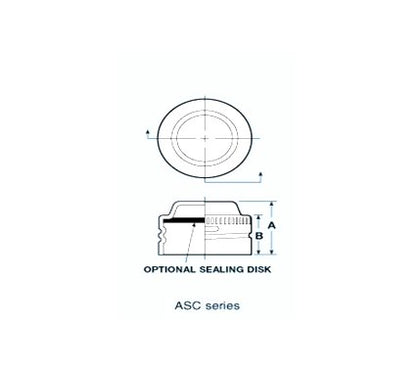

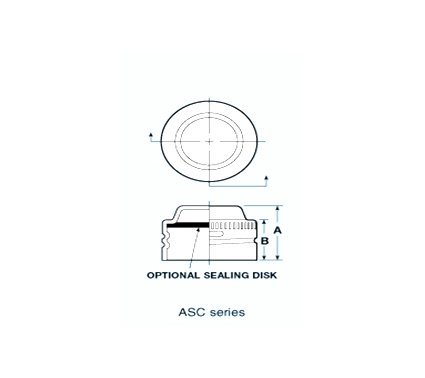

The ASC Series Threaded Aluminum Caps are vital aerospace and fluid power protective caps designed with a nose section for creating a secure low-pressure seal on threaded, flared fittings. Enhance seal integrity with optional neoprene, Butyl, or Buna N rubber sealing discs (Series ASC-DN). Crafted from 3003-0 Aluminum Alloy as per MIL-C-5501/3, NAS-817, and NAS-83 specifications. Ideal for 5/8 in tubes with a thread size of 7/8"-14. Dimensions: A - 0.740 in, B - 0.650 in.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/3 | NAS-817 | NAS-83

Specifications Color

Natural (silver)

Specifications Dimension A

0.740 in

Specifications Dimension B

0.650 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

7/8"-14 in

Specifications To Fit Tube Size

5/8 in

ASC Series Aluminum Caps for Threaded Flared Fittings
