ASC Series Aluminum Caps for Threaded Flared Fittings

Name: ASC Series Aluminum Caps for Threaded Flared Fittings
Brand: Arizona Sealing Devices, Inc.
SKU: CAP-a8618c
Price: 29.99 USD
Availability: OutOfStock

SKU:CAP-a8618c

Ensure aerospace and fluid power protection with ASC Series Aluminum Caps for Threaded Flared Fittings.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

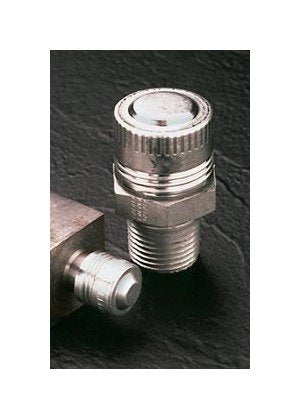

Meet institutional and aerospace protective needs with the ASC Series Aluminum Caps. These threaded caps feature a nose section design for a low pressure seal on threaded, flared fittings. Enhance the seal with a sealing disc (Series ASC-DN) available in neoprene, Butyl, or Buna N rubber. Made from 3003-0 Aluminum Alloy, these caps comply with MIL-C-5501/3, NAS-817, and NAS-83 standards, fitting 7/16 in tube size and 5/8"-18 thread size.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/3 | NAS-817 | NAS-83

Specifications Color

Natural (silver)

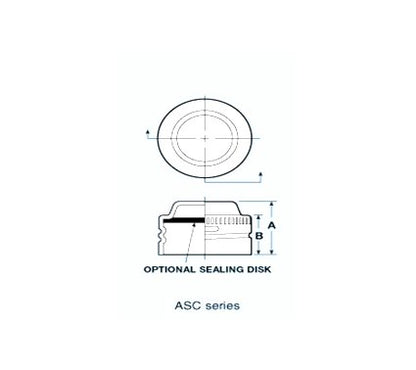

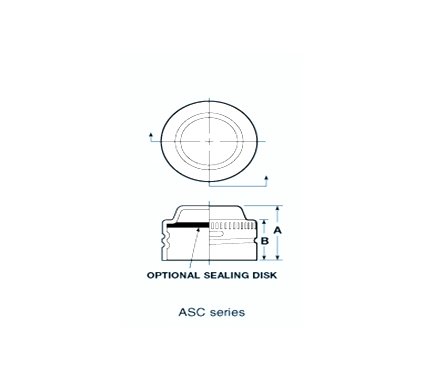

Specifications Dimension A

0.61 in

Specifications Dimension B

0.520 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

5/8"-18 in

Specifications To Fit Tube Size

7/16 in
