ASC Series Aluminum Caps for Threaded Flared Fittings

Name: ASC Series Aluminum Caps for Threaded Flared Fittings
Brand: Arizona Sealing Devices, Inc.
SKU: CAP-2b08f5
Price: 14.99 USD
Availability: OutOfStock

SKU:CAP-2b08f5

ASC Series Aluminum Caps for Threaded Flared Fittings. Designed for aerospace and fluid power applications, meeting MIL-C-5501/3, NAS-817, NAS-83 standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

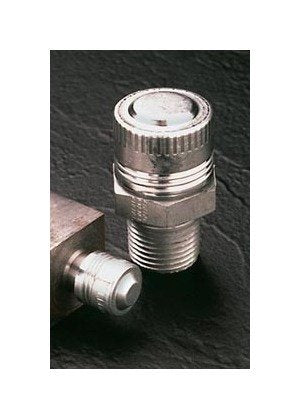

The ASC Series Aluminum Caps are essential aerospace and fluid power protective caps designed to create a low pressure seal on threaded, flared fittings. Crafted from 3003-0 Aluminum Alloy, these caps come in a natural silver color and meet stringent standards including MIL-C-5501/3, NAS-817, and NAS-83. With dimensions A and B at 0.85 inches and 0.760 inches respectively, these caps fit tube sizes of 3/4 inch and thread sizes of 1 1/16"-12 inch. For enhanced sealing, they can be paired with neoprene, Butyl, or Buna N rubber sealing discs from the ASC-DN series.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/3 | NAS-817 | NAS-83

Specifications Color

Natural (silver)

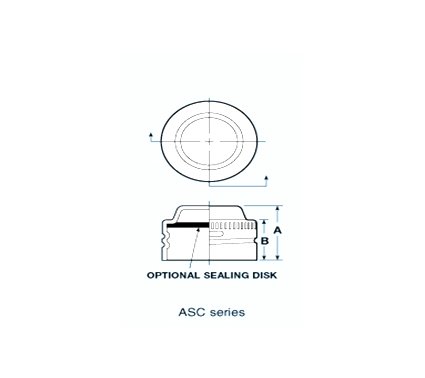

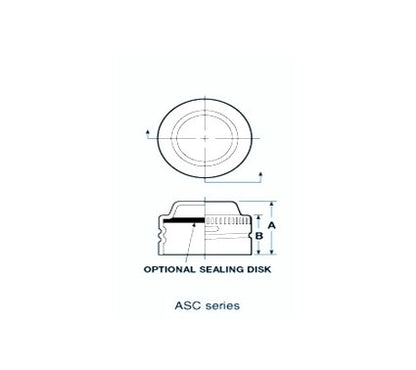

Specifications Dimension A

0.85 in

Specifications Dimension B

0.760 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

1 1/16"-12 in

Specifications To Fit Tube Size

3/4 in
