ASC Series Threaded Aluminum Caps

Name: ASC Series Threaded Aluminum Caps
Brand: Arizona Sealing Devices, Inc.
SKU: CAP-782e95
Price: 14.99 USD
Availability: OutOfStock

SKU:CAP-782e95

Protective caps for aerospace and fluid power fittings, with aluminum alloy construction and multiple sealing options for enhanced security.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

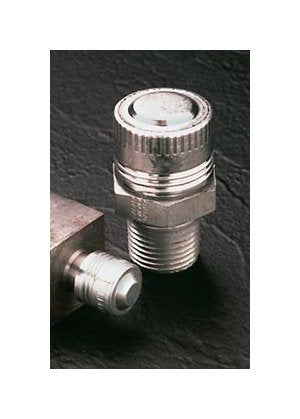

The ASC Series Threaded Aluminum Caps are essential protective caps for threaded flared fittings in aerospace and fluid power applications. Featuring a nose section design that creates a reliable low-pressure seal, these caps can be enhanced with neoprene, Butyl, or Buna N rubber sealing discs for a more secure seal. Crafted from 3003-0 Aluminum Alloy, these caps comply with MIL-C-5501/3, NAS-817, and NAS-83 standards. Designed to fit 1/8" tubes with 5/16"-24 threads, these caps provide precise dimensions of 0.420" (Dimension A) and 0.33" (Dimension B), ensuring a perfect fit every time.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/3 | NAS-817 | NAS-83

Specifications Color

Natural (silver)

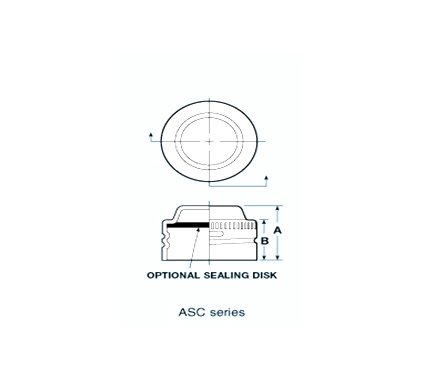

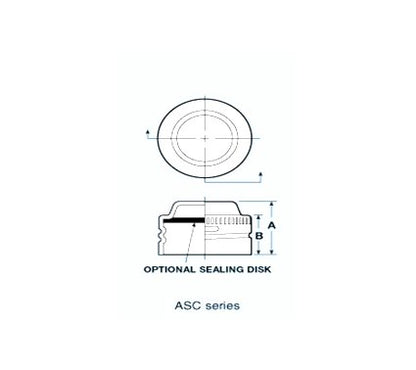

Specifications Dimension A

0.420 in

Specifications Dimension B

0.33 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

5/16"-24 in

Specifications To Fit Tube Size

1/8 in

ASC Series Threaded Aluminum Caps
