ASC Series Threaded Aluminum Caps for Threaded Flared Fittings

Name: ASC Series Threaded Aluminum Caps for Threaded Flared Fittings
Brand: Arizona Sealing Devices, Inc.
SKU: CAP-8be26d
Price: 15.99 USD
Availability: OutOfStock

SKU:CAP-8be26d

Protective aerospace caps for threaded flared fittings, create a secure low-pressure seal with optional neoprene disc. Compliant with MIL-C-5501/3, NAS-817, and NAS-83.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The ASC Series Threaded Aluminum Caps are essential aerospace and fluid power protective caps designed with a nose section for forming a low-pressure seal on threaded, flared fittings. Enhance the seal further by utilizing the optional neoprene sealing disc from the ASC-DN line. Constructed from 3003-0 Aluminum Alloy, these caps ensure durability and optimal performance. Compliant with MIL-C-5501/3, NAS-817, and NAS-83 standards, they fit 1/2in tubes with 3/4"-16 thread size. Whether for aerospace applications or industrial use, these caps deliver reliable protection and sealing solutions.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/3 | NAS-817 | NAS-83

Specifications Color

Natural (silver)

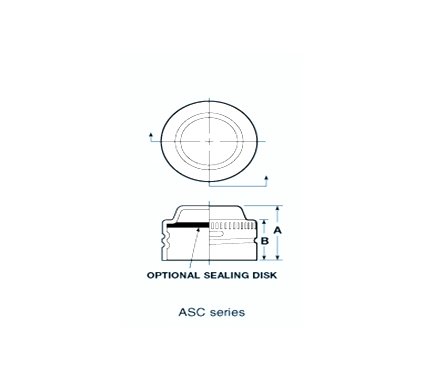

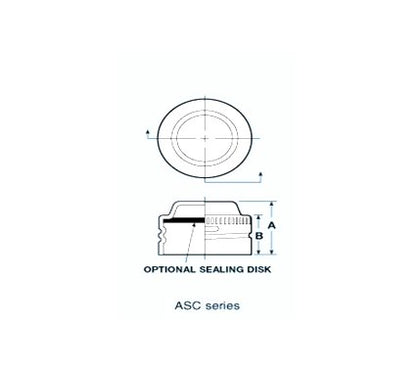

Specifications Dimension A

0.640 in

Specifications Dimension B

0.55 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

3/4"-16 in

Specifications To Fit Tube Size

1/2 in

ASC Series Threaded Aluminum Caps for Threaded Flared Fittings
