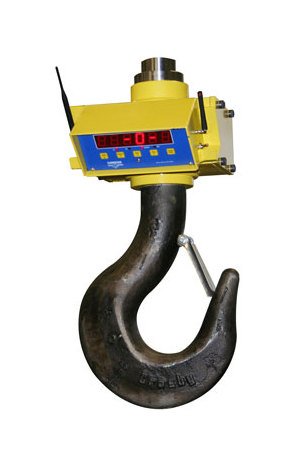

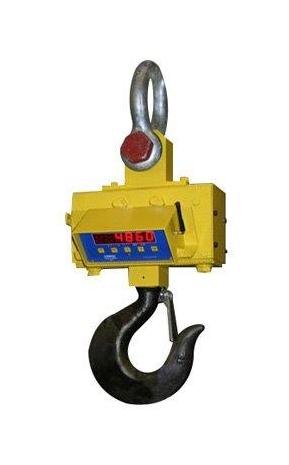

ASCS-15AT-RFL-10K All Steel Crane Scale
ASCS-15AT-RFL-10K All Steel Crane Scale
SKU:ASC-38b377
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
ASCS-15AT-RFL-10K All Steel Crane Scale
$49.99
Quantity: 1
Claim Your Seller Account
ASCS-15AT-RFL-10K All Steel Crane Scale
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Specifications Accuracy
0.1% of the applied load
Specifications Ac Power Supply
120 V
Specifications Applications
Shipping / Receiving | Work-In Process | Hot Metal Applications | Steel Service Center | Anywhere an overhead crane is used and a weight reading is desired of the material(s) lifted.
Specifications Calibration
Digital
Specifications Certifications
Made in USA
Specifications Graduation
2 lb
Specifications Handheld Remote Control
Gross/Net | LB/KG | Print | Tare | Zero
Specifications High Visibility Red Led Display Size
1.5 in
Specifications Hook
7 Ton Hook
Specifications Lift Capacity
10000 lb
Specifications Mating Hardware Type
Top Eye | Shackle | Bottom Hook
Specifications Meter Function
Gross/Net | LB/KG | On/Off | Print | Tare | Zero
Specifications Operating Time Between Charges
40 h
Specifications Options
AC Power Supply - 120VAC (We provide the connection - customer provides cabling) | Custom Software and Hardware Devices to meet your application requirements. | Headroom loss Adapter (Provides minimum headroom loss) | Headroom Loss Adapter Nut (Mated 10 Optional Headroom Loss Adapter) | Outdoor Environmental Protection Package (AC Only) | Radio Frequency Receivers: A: Desk Mount Receiver/Display B: Desk Mount Receiver/Display plus a RS232 port for computer, scoreboard or printer C: Handheld Receiver/Display D: Scoreboard 4 Inch (in) or 6 Inch (in) Display Heat Protection Package for Foundry Applications (All Heat Protection Packages Include Infrared Glass Lens) Package A: 1/4 Inch (in) Heal Plate with Deflectors Package B: Insulated 114 Inch (in) Heat Plate with Deflectors Package C: Insulated 114 Inch (in) Heat Plate Surround Crane Overload Warning System (Strobe Light and Audible Alarm) | Spare Battery Pack
Specifications Overload Indication
105% of the rated capacity
Specifications Power Source
12 V Rechargeable Battery (Charger included)
Specifications Safe Overload
150% of Rated Capacity
Specifications Shipping Weight
205 lb
Specifications Standard Eye Shackle
#8 Eye
Specifications Standard Headroom Loss
17-1/8 in
Specifications Steel Enclosure Size
1/4 in
Specifications Ultimate Overload
500% of Rated Capacity (Breaking Strength)
Specifications Warranty
Cambridge Scale Works, Inc. will warrant this product for one full year against defects in material and/or workmanship.
