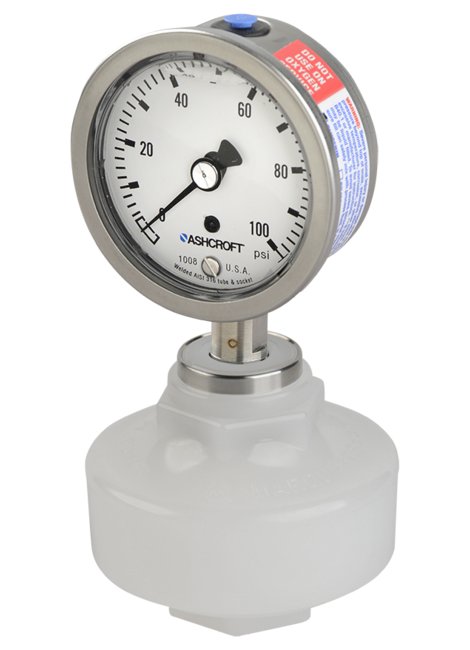

Ashcroft 2.5" Gauge Guard w/ 1/2" PVDF Inlet & EPDM Diaphragm
Ashcroft 2.5" Gauge Guard w/ 1/2" PVDF Inlet & EPDM Diaphragm
SKU:GAU-6e5fc2
Protect & isolate instruments with precision using Ashcroft 2.5" Gauge Guard featuring PVDF Inlet & EPDM Diaphragm.
Regular price
$381.50
Regular price
Sale price
$381.50
Unit price
per
Initiate Order
Ashcroft 2.5" Gauge Guard w/ 1/2" PVDF Inlet & EPDM Diaphragm
$381.50
Quantity: 1
Claim Your Seller Account
Ashcroft 2.5" Gauge Guard w/ 1/2" PVDF Inlet & EPDM Diaphragm
$381.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ashcroft 2.5" Gauge Guard with 1/2" PVDF Inlet and EPDM Diaphragm is designed to protect and isolate pressure sensing instruments effectively. Featuring a convoluted diaphragm for accurate pressure transmission, it ensures total isolation from system media. With a low profile design eliminating dead volume and simple installation process, this guard offers optimum pressure containment and maintenance efficiency. Compliant with ANSI Schedule 120 standards, it guarantees reliable performance for institutional and government buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE®, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-160 PSI, All Stainless
Specifications List Price
381.5 USD
Specifications Materials
PVDF, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
