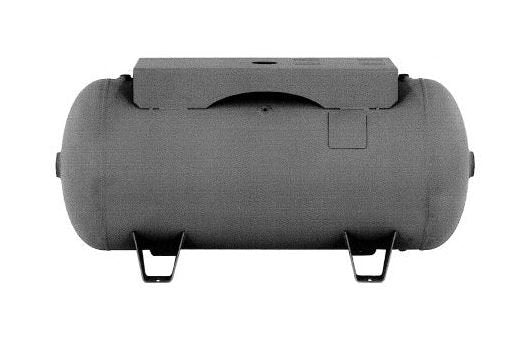

ASME 30 Gallon Horizontal Air Receiver - 16in Diameter
ASME 30 Gallon Horizontal Air Receiver - 16in Diameter
SKU:HOR-bd9d7d
Meet institutional air storage needs with the ASME-certified 30 Gallon Horizontal Air Receiver - 16in Diameter, designed for high-pressure applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
ASME 30 Gallon Horizontal Air Receiver - 16in Diameter
$499.99
Quantity: 1
Claim Your Seller Account
ASME 30 Gallon Horizontal Air Receiver - 16in Diameter
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ASME-certified 30 Gallon Horizontal Air Receiver features a design pressure of 200 psi and a standard design temperature of 450°F, meeting stringent industry standards. This reliable air receiver boasts NPT threaded openings and a grey oxide primer finish, making it suitable for high-pressure applications up to 600 psi. With precise dimensions and sturdy construction, this tank is a dependable choice for industrial settings requiring efficient air storage and distribution.

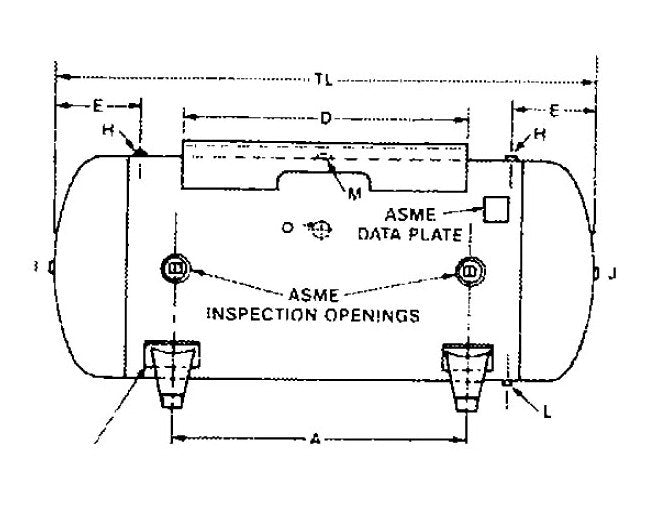

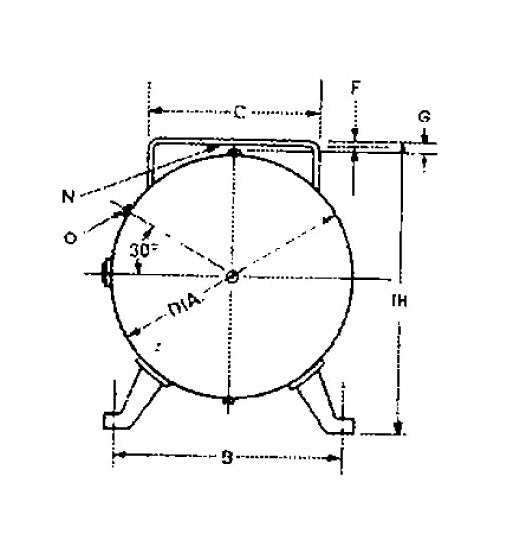

Product Specifications
Dimensions Dimension A
5.75 in
Dimensions Dimension B
13.25 in
Dimensions Dimension C
9 in
Dimensions Dimension D
20 in
Dimensions Dimension E
12.81 in
Dimensions Dimension F
2 in
Dimensions Dimension G
1.5 in
Note 0
Pads are not used on 16" diameter tanks.
Openings Opening H
3/4 in
Openings Opening I
1/2 in
Openings Opening J
3/4 in
Openings Opening K
1-1/2 in
Openings Opening L
1/4 in
Openings Opening M
3/4 in
Openings Opening N
3 in
Openings Opening O
1/4 in
Specifications Design Pressure
200 psi
Specifications Diameter
16 in
Specifications Height
18 in
Specifications Industry Standards
ASME
Specifications Length
38 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
30 gal
