ASME Certified 120 Gal Vertical Air Receiver, 30" Diameter
ASME Certified 120 Gal Vertical Air Receiver, 30" Diameter
SKU:VER-e8bd6a
ASME-certified 120 Gal Vertical Air Receiver with 30" Diameter, ideal for high-pressure systems. Built to ASME standards with 450ºF design temperature and 200 psi design pressure.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
ASME Certified 120 Gal Vertical Air Receiver, 30" Diameter
$899.99
Quantity: 1
Claim Your Seller Account
ASME Certified 120 Gal Vertical Air Receiver, 30" Diameter
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ASME-certified 120-gallon Vertical Air Receiver with a 30-inch diameter is designed to meet high-pressure needs with a standard design temperature of 450 ºF and a design pressure of 200 psi. This tank, built to ASME standards, offers durability and safety, with NPT threaded openings and a grey oxide primer finish. Suitable for various applications, this air receiver ensures reliable performance and compliance with industry standards.
Product Specifications

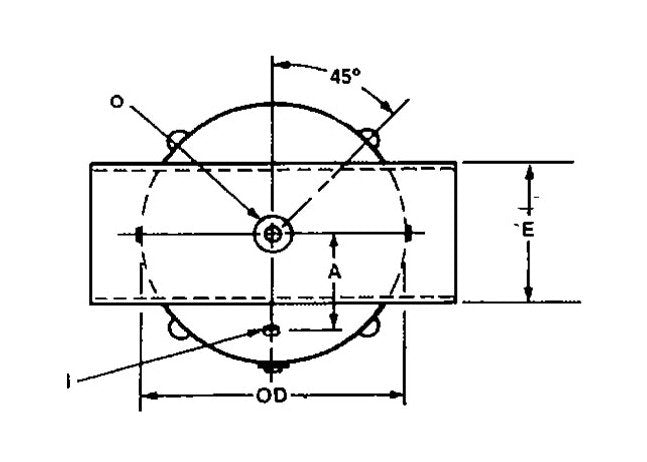

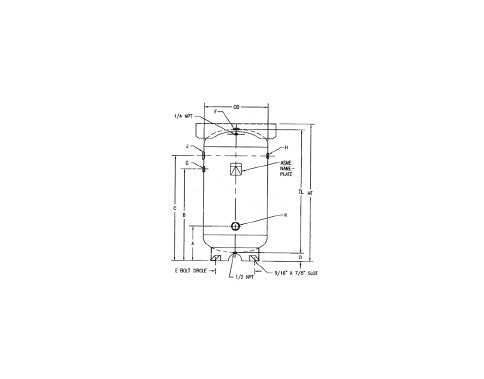

Dimensions Dimension A
21 in
Dimensions Dimension B
35 in
Dimensions Dimension C
41 in
Dimensions Dimension D
8 in
Dimensions Dimension E
27 in
Dimensions Dimension F
2 in
Dimensions Dimension G
2 in
Dimensions Dimension H
2 in
Openings Opening I
2 in
Openings Opening J
2 in
Openings Opening K
2 in
Openings Opening L
2 in
Openings Opening M
1/2 in
Openings Opening N
2 in
Openings Opening O
2 in
Specifications Design Pressure
200 psi
Specifications Diameter
30 in
Specifications Height
54 in
Specifications Industry Standards
ASME
Specifications Length
46 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
120 gal
