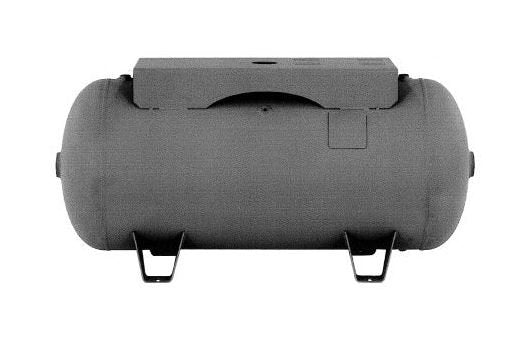

ASME Certified 200 Gallon Horizontal Air Receiver - 30 Inch Diameter
ASME Certified 200 Gallon Horizontal Air Receiver - 30 Inch Diameter
SKU:HOR-2d0faf
ASME-certified 200 Gallon Horizontal Air Receiver with 30-inch diameter, 200 psi pressure, and 450°F temperature. NPT threaded openings, grey oxide primer finish, and Saddle leg support for stability.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
ASME Certified 200 Gallon Horizontal Air Receiver - 30 Inch Diameter
$899.99
Quantity: 1
Claim Your Seller Account
ASME Certified 200 Gallon Horizontal Air Receiver - 30 Inch Diameter
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ASME-certified 200 Gallon Horizontal Air Receiver with a 30-inch diameter is designed to meet the rigorous standards set by ASME. With a design pressure of 200 psi and a standard design temperature of 450°F, this air receiver ensures reliability and safety in air compression systems. Featuring NPT threaded openings and a grey oxide primer finish, this high-quality tank is built for long-lasting performance. The inclusion of Saddle leg support on the 30° diameter enhances stability, making it ideal for industrial and institutional applications. High-pressure tank options are also available, rated up to 600 psi for specialized requirements.
Product Specifications

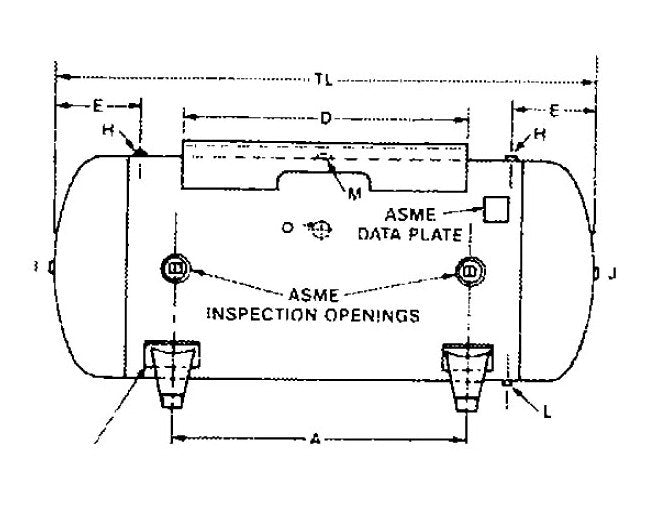

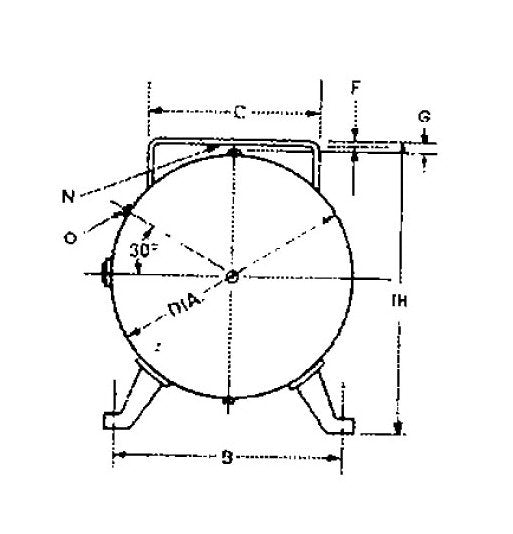

Dimensions Dimension A
11.63 in
Dimensions Dimension B
24.38 in
Dimensions Dimension C
17 in
Dimensions Dimension D
38 in
Dimensions Dimension E
23.5 in
Dimensions Dimension F
3 in
Dimensions Dimension G
2 in
Note 0
Pads are not used on 16" diameter tanks.Saddle leg support standard on 30º diameter.
Openings Opening H
2 in
Openings Opening I
1 in
Openings Opening J
2 in
Openings Opening K
2 in
Openings Opening L
1 in
Openings Opening M
2 in
Openings Opening N
3 in
Openings Opening O
1/4 in
Specifications Design Pressure
200 psi
Specifications Diameter
30 in
Specifications Height
33 in
Specifications Industry Standards
ASME
Specifications Length
72 in
Specifications Note For 200 Gallon Capacity
Saddle leg support standard on 30° diameter
Specifications Standard Design Temperature
450 ºF
Specifications Volume
200 gal
