ASME Certified 240 Gallon Horizontal Air Receiver with 200 psi Design Pressure
ASME Certified 240 Gallon Horizontal Air Receiver with 200 psi Design Pressure
SKU:HOR-0588f8
Reliable 240 gal ASME-certified horizontal air receiver with 200 psi design pressure for industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
ASME Certified 240 Gallon Horizontal Air Receiver with 200 psi Design Pressure
$799.99
Quantity: 1
Claim Your Seller Account
ASME Certified 240 Gallon Horizontal Air Receiver with 200 psi Design Pressure
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

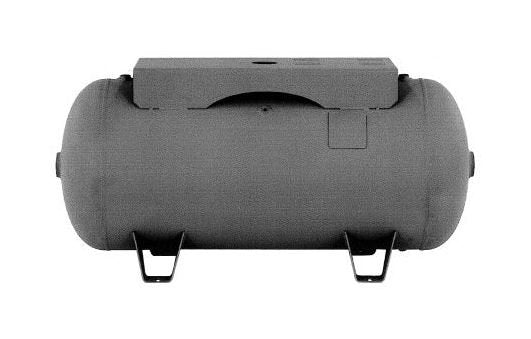

Meet your institutional air storage needs with our 240-gallon horizontal air receiver built to ASME code. This robust tank features NPT threaded openings, a standard design temperature of 450°F, and a grey oxide primer finish. With a design pressure of 200 psi, this high-pressure tank ensures reliable performance for a variety of applications. The 39-inch diameter and 84-inch length provide ample volume for efficient air storage. Saddle leg support on the 30° diameter offers stability, making it ideal for industrial settings.
Product Specifications

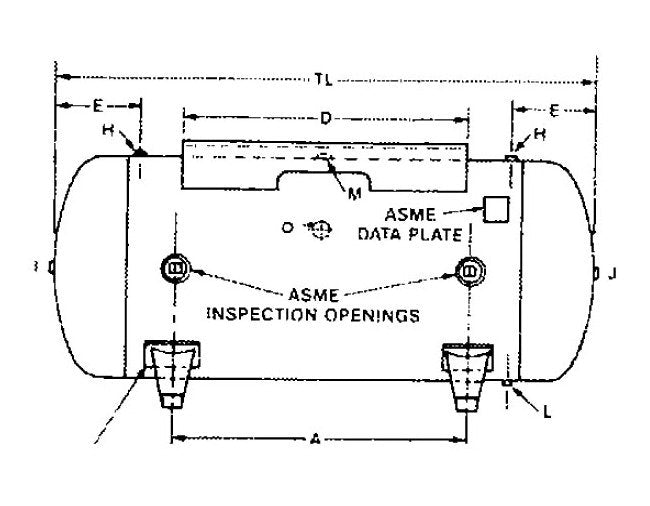

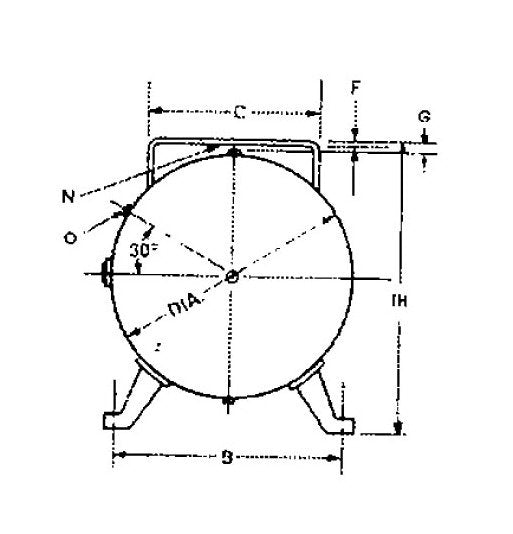

Dimensions Dimension A
11.63 in
Dimensions Dimension B
30.38 in
Dimensions Dimension C
20 in
Dimensions Dimension D
44 in
Dimensions Dimension E
23.5 in
Dimensions Dimension F
3 in
Dimensions Dimension G
2 in
Note 0
Pads are not used on 16" diameter tanks.Saddle leg support standard on 30º diameter.
Openings Opening H
2 in
Openings Opening I
1 in
Openings Opening J
2 in
Openings Opening K
2 in
Openings Opening L
1 in
Openings Opening M
2 in
Openings Opening N
3 in
Openings Opening O
1/4 in
Specifications Design Pressure
200 psi
Specifications Diameter
39 in
Specifications Height
33 in
Specifications Industry Standards
ASME
Specifications Length
84 in
Specifications Note For 240 Gallon Capacity
Saddle leg support standard on 30° diameter
Specifications Standard Design Temperature
450 ºF
Specifications Volume
240 gal
