ASME Certified 240 Gallons Vertical Air Receiver (30 in Diameter)
ASME Certified 240 Gallons Vertical Air Receiver (30 in Diameter)
SKU:VER-e3c55d
Reliable ASME-certified 240 gal vertical air receiver with 200 psi design pressure and 450 ºF standard design temperature.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
ASME Certified 240 Gallons Vertical Air Receiver (30 in Diameter)
$1,499.99
Quantity: 1
Claim Your Seller Account
ASME Certified 240 Gallons Vertical Air Receiver (30 in Diameter)
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ASME-certified 240 Gallons Vertical Air Receiver boasts a design pressure of 200 psi and a standard design temperature of 450 ºF, meeting stringent industry standards. With NPT threaded openings and a high-quality grey oxide primer finish, this vertical tank offers reliability and durability for industrial applications. Available in various sizes to meet different volume requirements, this air receiver is a top choice for high-pressure systems.

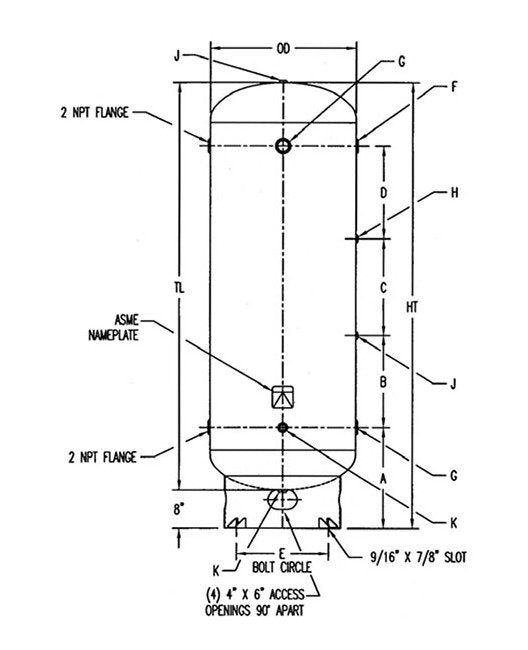

Product Specifications
Dimensions Dimension A
19 in
Dimensions Dimension B
20 in
Dimensions Dimension C
19 in
Dimensions Dimension D
13.00 in
Dimensions Dimension E
8 in
Dimensions Dimension F
26 in
Note 0
Call for pricing on higher pressure. Larger receivers available to 3800 gallons.
Openings Opening G
3 in
Openings Opening H
1/4 in
Openings Opening J
1/2 in
Openings Opening K
1 in
Openings Opening L
1 in
Openings Opening M
1/2 in
Openings Opening N
2 in
Specifications Design Pressure
200 psi
Specifications Diameter
30 in
Specifications Height
92 in
Specifications Industry Standards
ASME
Specifications Length
84 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
240 gal
