ASME Certified 30 Gallon Horizontal Air Receiver Tank
ASME Certified 30 Gallon Horizontal Air Receiver Tank
SKU:HOR-932994
ASME-certified 30 gal horizontal air receiver tank with 200 psi design pressure & 450°F temperature. Ideal for high-pressure applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
ASME Certified 30 Gallon Horizontal Air Receiver Tank
$599.99
Quantity: 1
Claim Your Seller Account
ASME Certified 30 Gallon Horizontal Air Receiver Tank
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

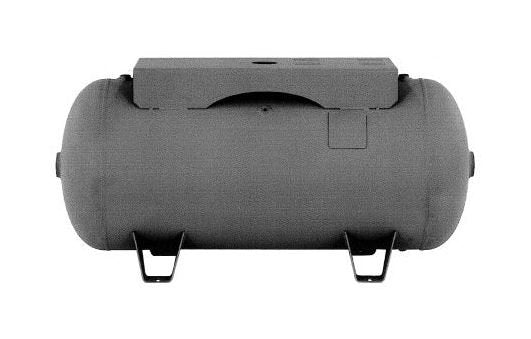

Enhance your industrial air system with this ASME-certified 30-gallon horizontal air receiver tank. Designed to meet rigorous industry standards, this tank boasts a 200 psi design pressure, ensuring reliable performance. With NPT threaded openings and a standard 450°F design temperature, this tank is ideal for high-pressure applications. The grey oxide primer finish provides durability, while the compact 18-inch diameter and 21-inch height make it versatile for various industrial setups. Trust in the quality and compliance of this tank for optimal air storage solutions.

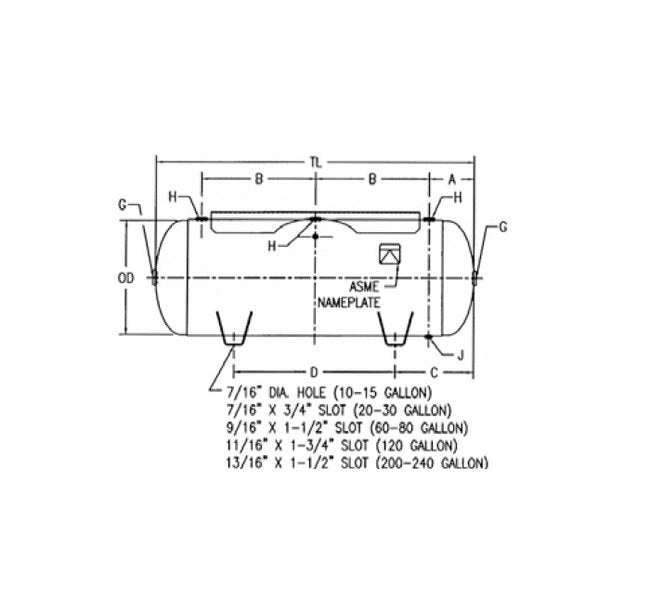

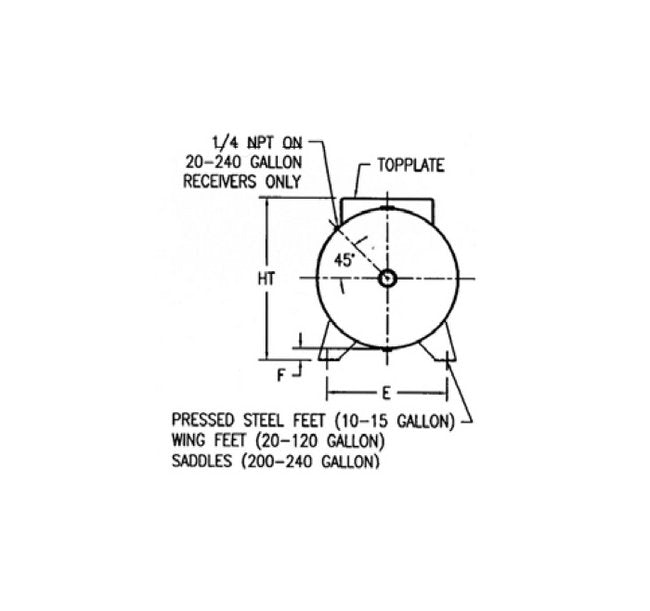

Product Specifications
Dimensions Dimension A
5.75 in
Dimensions Dimension B
13.25 in
Dimensions Dimension C
9 in
Dimensions Dimension D
20 in
Dimensions Dimension E
12.81 in
Dimensions Dimension F
2 in
Note 0
Pads are not used on 16" diameter tanks.ASME Mobile Truck Receiver With Platform.
Openings Opening G
1-1/4 in
Openings Opening H
1/4 in
Openings Opening J
3/4 in
Specifications Design Pressure
200 psi
Specifications Diameter
16 in
Specifications Height
21 in
Specifications Industry Standards
ASME
Specifications Length
38 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
30 gal
