ASME Certified 30 Gallon Vertical Air Receiver Tank
ASME Certified 30 Gallon Vertical Air Receiver Tank
SKU:VER-b42a07
ASME-certified 30 gal vertical air receiver tank for high pressure applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
ASME Certified 30 Gallon Vertical Air Receiver Tank
$349.99
Quantity: 1
Claim Your Seller Account
ASME Certified 30 Gallon Vertical Air Receiver Tank
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your compressed air storage needs with our ASME-certified 30-gallon vertical air receiver tank. Designed for high pressure applications up to 200 psi, this tank boasts a standard design temperature of 450 ºF. With NPT threaded openings and a durable grey oxide primer finish, this tank ensures reliability and compliance with industry standards. Perfect for industrial and institutional use.
Product Specifications

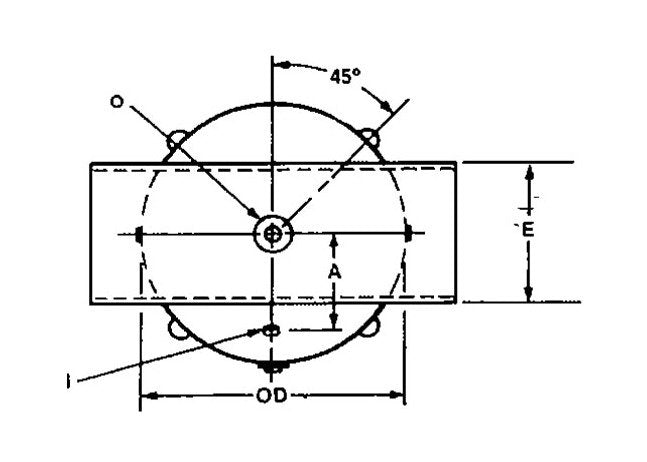

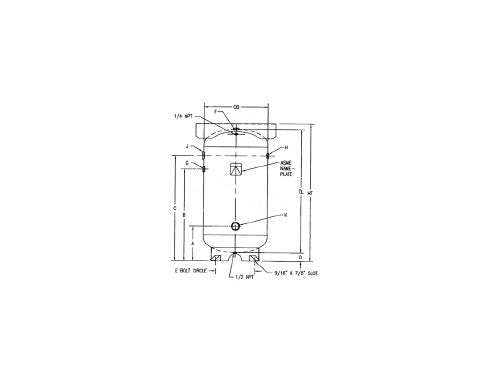

Dimensions Dimension A
12.56 in
Dimensions Dimension B
25.06 in
Dimensions Dimension C
30.06 in
Dimensions Dimension D
2.81 in
Dimensions Dimension E
15 in
Dimensions Dimension F
0.75 in
Dimensions Dimension G
0.75 in
Dimensions Dimension H
0.75 in
Openings Opening I
1-1/2 in
Openings Opening J
1-1/2 in
Openings Opening K
3/4 in
Openings Opening L
3/4 in
Openings Opening M
1/2 in
Openings Opening N
1-1/4 in
Openings Opening O
3/4 in
Specifications Design Pressure
200 psi
Specifications Diameter
16 in
Specifications Height
40.81 in
Specifications Industry Standards
ASME
Specifications Length
38 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
30 gal
