ASME Certified 60 Gallon Horizontal Air Receiver - 20in Diameter
ASME Certified 60 Gallon Horizontal Air Receiver - 20in Diameter
SKU:HOR-8f37d7
Experience efficiency and durability with our ASME Certified 60 Gal Horizontal Air Receiver - 20in Diameter, designed for high-pressure applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
ASME Certified 60 Gallon Horizontal Air Receiver - 20in Diameter
$349.99
Quantity: 1
Claim Your Seller Account
ASME Certified 60 Gallon Horizontal Air Receiver - 20in Diameter
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

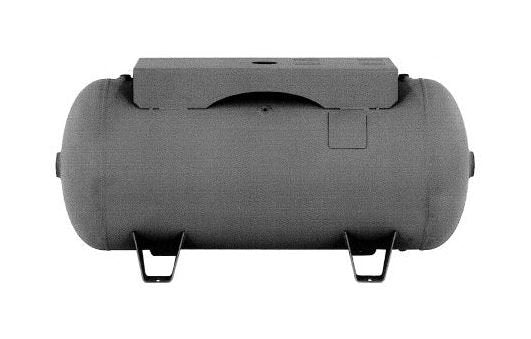

The ASME Certified 60 Gallon Horizontal Air Receiver boasts a design pressure of 200 psi and a standard design temperature of up to 450°F, making it suitable for high-pressure applications. National board registered and featuring NPT threaded openings, this air receiver ensures superior reliability and performance. Its durable construction and grey oxide primer finish guarantee longevity and protection against corrosion. Ideal for industrial use, this tank is available with high-pressure options up to 600 psi, meeting stringent industry standards for safety and quality.
Product Specifications

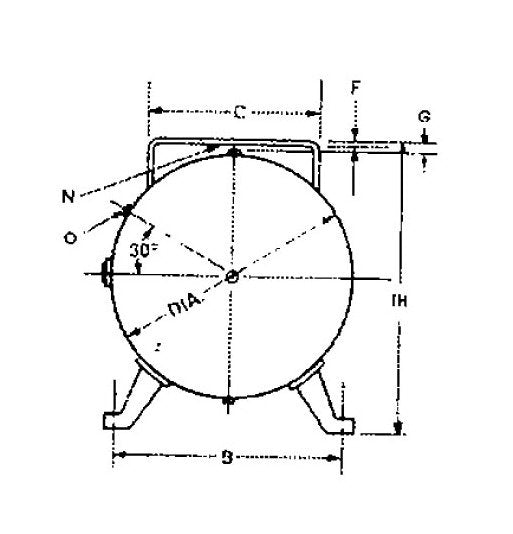

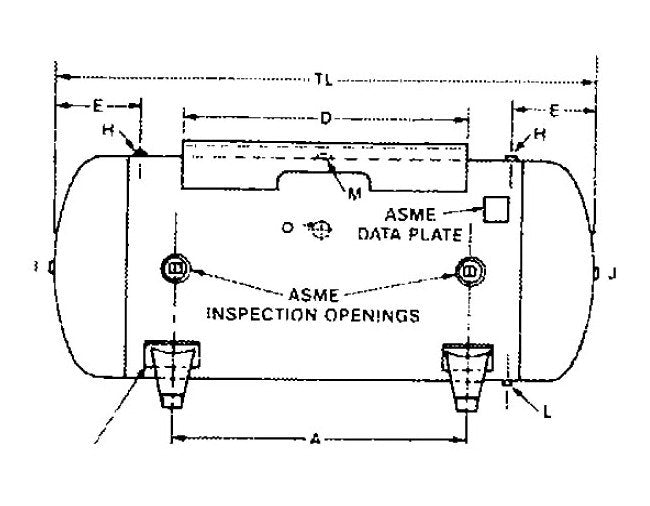

Dimensions Dimension A
7.75 in
Dimensions Dimension B
16.25 in
Dimensions Dimension C
12 in
Dimensions Dimension D
24 in
Dimensions Dimension E
16.5 in
Dimensions Dimension F
2.31 in
Dimensions Dimension G
2 in
Note 0
Pads are not used on 16" diameter tanks.
Openings Opening H
3/4 in
Openings Opening I
1/2 in
Openings Opening J
1 in
Openings Opening K
2 in
Openings Opening L
1/2 in
Openings Opening M
1 in
Openings Opening N
3 in
Openings Opening O
1/4 in
Specifications Design Pressure
200 psi
Specifications Diameter
20 in
Specifications Height
22.31 in
Specifications Industry Standards
ASME
Specifications Length
48 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
60 gal
