ASME Certified 80 Gallon Vertical Air Receiver - 24 Inch Diameter
ASME Certified 80 Gallon Vertical Air Receiver - 24 Inch Diameter
SKU:VER-29068f
Explore our ASME-certified 80 gallon vertical air receiver for reliable high-pressure applications. Built to national board registration standards.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
ASME Certified 80 Gallon Vertical Air Receiver - 24 Inch Diameter
$699.99
Quantity: 1
Claim Your Seller Account
ASME Certified 80 Gallon Vertical Air Receiver - 24 Inch Diameter
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ASME-certified 80-gallon vertical air receiver boasts a durable design meeting national board registration standards. With a design pressure of 200 psi and a standard design temperature of 450 ºF, this high-quality tank includes NPT threaded openings, a grey oxide primer finish, and a range of dimensions ensuring versatility. Ideal for high-pressure applications up to 600 psi, this vertical air receiver guarantees top-tier performance and reliability for industrial operations.

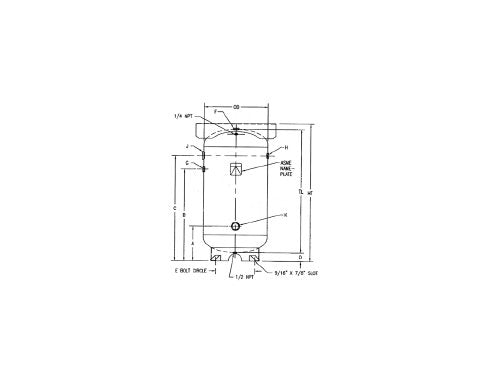

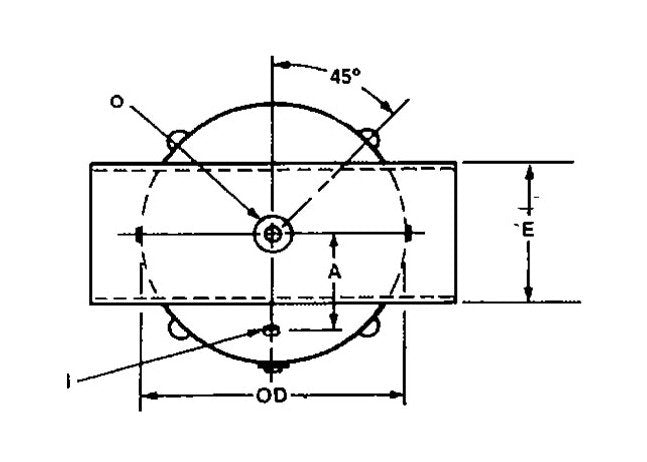

Product Specifications
Dimensions Dimension A
16.06 in
Dimensions Dimension B
34.34 in
Dimensions Dimension C
39.34 in
Dimensions Dimension D
3.19 in
Dimensions Dimension E
21 in
Dimensions Dimension F
1.25 in
Dimensions Dimension G
1.25 in
Dimensions Dimension H
1.25 in
Openings Opening I
2 in
Openings Opening J
2 in
Openings Opening K
1-1/4 in
Openings Opening L
1-1/4 in
Openings Opening M
1/2 in
Openings Opening N
2 in
Openings Opening O
1-1/4 in
Specifications Design Pressure
200 psi
Specifications Diameter
24 in
Specifications Height
49.19 in
Specifications Industry Standards
ASME
Specifications Length
46 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
80 gal
