SKU:VAL-735645
High-quality ASME Class 150 Flanged Ball Valve with full port design and automation-ready features. Meets ASME B16.34 and API 608 standards.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
ASME Class 150 Flanged Ball Valve - Merit Brass
$699.99
Quantity: 1
Claim Your Seller Account
ASME Class 150 Flanged Ball Valve - Merit Brass
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

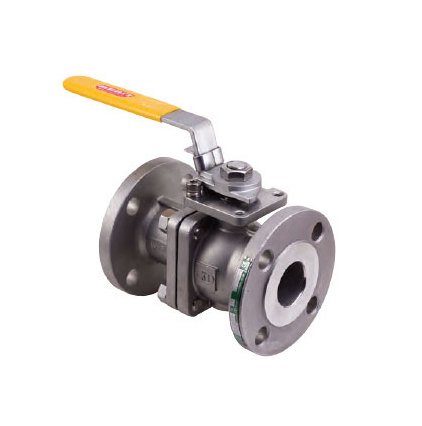

The Merit Brass ASME Class 150 Flanged End Ball Valve is a high-quality valve designed for industrial applications. This 2-PC body valve features a full port design with a built-in ISO 5211 Mounting Pad for easy automation. It is equipped with anti-static devices for Ball-Stem-Body, a blow-out proof stem, and a pressure balance hole in the ball slot. The valve meets stringent standards including ASME B16.34 design, API 608 inspection, and more. With a durable construction and various alloy options available, this valve is a reliable choice for your fluid control needs.
Product Specifications
Specifications Anti Static Device No 9
SUS 316SUS 304
Specifications Ball No 3
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI3A / 1.4308
Specifications Ball Seat No 4
TFM1600 / PTFE / RTFE
Specifications Belleville Washer No 15
SUS 301
Specifications Body Gasket No 5
PTFE
Specifications Body No 1
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI 3A /1.4308A216 - WCB / SCPH2 / 1.0619
Specifications Bolting No 6
A193-B8A193- B7
Specifications Bolt Nut No 7
A194-8A194-2H
Specifications Bushing No 13
50%SS+50%PTFE
Specifications Cv
1100
Specifications End Cap No 2
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI3A / 1.4308A216 - WCB / SCPH2 / 1.0619
Specifications Gland No 14
SUS 316
Specifications Handle Adapter 3 4 No 24
A351 -CF8
Specifications Lever 12 2 12 No 20
SUS 304
Specifications Lever Nut 12 2 12 No 18
A194-8
Specifications Lever Sleeve No 19
VINYL PLASTIC
Specifications Lock Device 12 2 12 No 21
SUS 304
Specifications Nameplate No 28
SUS 304
Specifications Options
Casting per NACE/MR - 01 -75 for Sour Gas Service | Castings Approved by TUV AD 2000-Merkblatt W0/EN 10204 3.2 Form. (EN 10204 3.1 Form is free) | Other Alloy are Available
Specifications O Ring No 11
FKM (VITON)
Specifications Pipe Handle 3 4 No 23
A53+Zn PLATED
Specifications Port
3.93
Specifications Set Screw 3 4 No 25
A193-B8
Specifications Size
4 in
Specifications Snap Ring 3 4 No 26
SUS 304
Specifications Stem No 8
SUS 316SUS 304
Specifications Stem Nut No 16
A194-8
Specifications Stem Packing No 12
PTFE
Specifications Stop Bolt No 22
A193- B8
Specifications Stop Lock Cap No 17
SUS 304
Specifications Thrust Washer No 10
PTFE
Specifications Torque
974 in·lbs
Specifications Triangle Stopper 3 4 No 27
SUS 420
Specifications Weight
65.75 lbs
