ASME Class 150 Line Blind Paddle Spacer - 1 Inch, 285 psi at 100°F, WOG
ASME Class 150 Line Blind Paddle Spacer - 1 Inch, 285 psi at 100°F, WOG
SKU:LIN-242d56
High-quality ASME Class 150 Line Blind Paddle Spacer for reliable industrial pipeline maintenance. Ensures safe isolation and reactivation of piping systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
ASME Class 150 Line Blind Paddle Spacer - 1 Inch, 285 psi at 100°F, WOG
$49.99
Quantity: 1
Claim Your Seller Account
ASME Class 150 Line Blind Paddle Spacer - 1 Inch, 285 psi at 100°F, WOG
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ASME Class 150 Line Blind Paddle Spacer is a crucial component for industrial piping systems, crafted with precision from carbon steel following ASME B16.48 specifications. With a pressure rating of 285 psi at 100 degrees Fahrenheit, it ensures reliable performance under varying operational conditions. Featuring dimensions compliant with ASME standards, this paddle spacer offers a sturdy and durable solution, ideal for safely isolating sections during maintenance and facilitating efficient reactivation of pipelines.
Product Specifications
Additional Information Additional Information
Sure Flow Equipment Line Blind thicknesses are based on ASME B16.48 specifications and are designed to withstand any pressure - temperature combination that an ASME flange will withstand.One coat of standard shop primer will be applied to all carbon steel Line Blinds unless specified differently.Mill finish is standard. Other surface finishes are available. Contact factory for options. Standard materials are: SA516 Gr.70304 Stainless Steel316 Stainless Steel Other alloys can be furnished upon requestSure Flow Equipment Line Blinds are produced in strict accordance with the following codes of practice: ASME B16.48ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

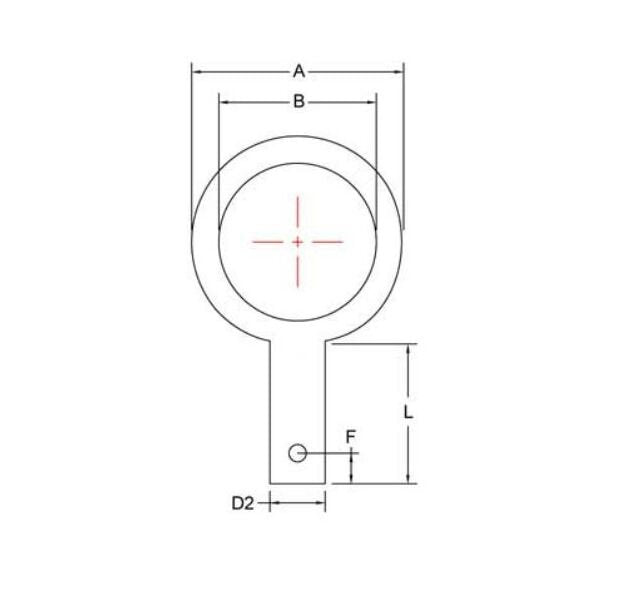

Dimensions Diameter E
5/8 in
Dimensions Dimension A
2 1/2 in
Dimensions Dimension B
1 1/16 in
Dimensions Dimension C
3 1/8 in
Dimensions Dimension D1
1 1/2 in
Dimensions Dimension D2
1 in
Dimensions Dimension F
1 in
Dimensions Dimension L
4 in
Dimensions Size
1 in
Dimensions Thickness
1/8 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Carbon Steel
Specifications Prefix Size
0100
