ASME Class 150 Paddle Spacer for Line Blinds and Bleed Rings
ASME Class 150 Paddle Spacer for Line Blinds and Bleed Rings
SKU:LIN-0f96ed
High-quality ASME Class 150 Paddle Spacer designed for precise flow control in piping systems. Sure Flow product with carbon steel material, 285 psi pressure at 100°F for water, oil, gas applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
ASME Class 150 Paddle Spacer for Line Blinds and Bleed Rings
$99.99
Quantity: 1
Claim Your Seller Account
ASME Class 150 Paddle Spacer for Line Blinds and Bleed Rings
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ASME Class 150 Paddle Spacer is a high-quality product designed for use in piping systems requiring precise flow control. Manufactured by Sure Flow with carbon steel material and meeting ASME B16.48 specifications, this spacer offers exceptional durability and reliability. With operating pressures of 285 psi at 100°F for water, oil, and gas applications, it ensures optimal performance in diverse environments. The intricate dimensions, including a 10-inch size and various length measurements, guarantee a perfect fit for your ASME flange systems. Compliant with ASME Class 150 and ISO 9001:2008 standards, this paddle spacer is a top choice for industrial and institutional applications.
Product Specifications
Additional Information Additional Information
Sure Flow Equipment Line Blind thicknesses are based on ASME B16.48 specifications and are designed to withstand any pressure - temperature combination that an ASME flange will withstand.One coat of standard shop primer will be applied to all carbon steel Line Blinds unless specified differently.Mill finish is standard. Other surface finishes are available. Contact factory for options. Standard materials are: SA516 Gr.70304 Stainless Steel316 Stainless Steel Other alloys can be furnished upon requestSure Flow Equipment Line Blinds are produced in strict accordance with the following codes of practice: ASME B16.48ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

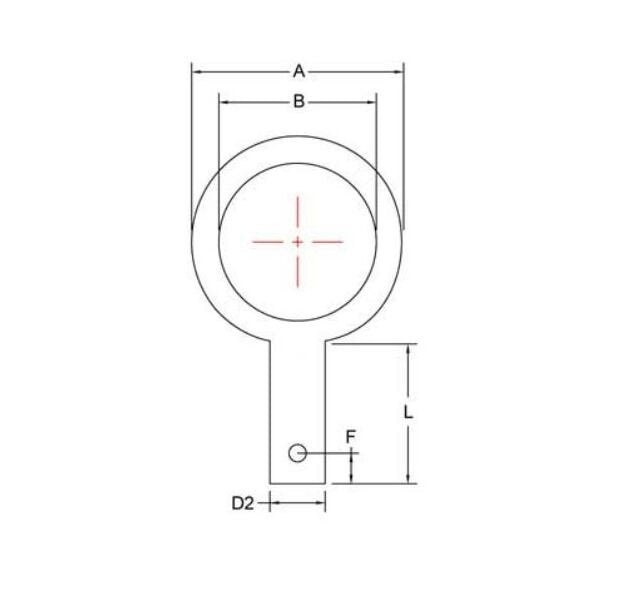

Dimensions Diameter E
1 in
Dimensions Dimension A
13 1/4 in
Dimensions Dimension B
10 3/4 in
Dimensions Dimension C
14 1/4 in
Dimensions Dimension D1
4 in
Dimensions Dimension D2
1 in
Dimensions Dimension F
1 in
Dimensions Dimension L
5 in
Dimensions Size
10 in
Dimensions Thickness
5/8 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Carbon Steel
Specifications Prefix Size
1000
