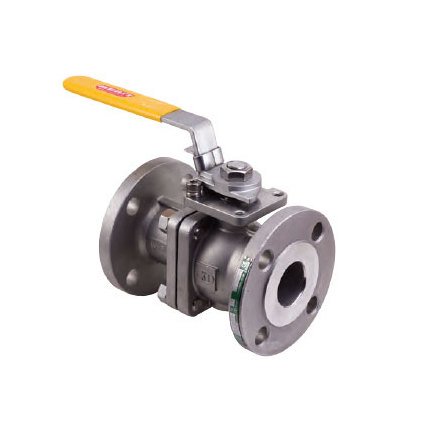

The Merit Brass ASME Class 300 Flanged End Ball Valve is a top-tier valve designed for uncompromising reliability in industrial settings. This 2-piece body valve features a full port for optimal flow, built-in ISO 5211 mounting pad for seamless automation, and anti-static devices for enhanced safety. With features like blow-out proof stem, pressure balance hole in ball slot, and casting boss for easy draining, this valve excels in performance and durability. Compliant with ASME B16.34, API 608, and other rigorous standards, this valve ensures superior quality and longevity for your operations.
Product Specifications
Specifications Anti Static Device No 9
SUS 316SUS 304
Specifications Ball No 3
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI3A / 1.4308
Specifications Ball Seat No 4
TFM1600 / PTFE / RTFE
Specifications Belleville Washer No 15
SUS 301
Specifications Body Gasket No 5
PTFE
Specifications Body No 1
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI 3A /1.4308A216 - WCB / SCPH2 / 1.0619
Specifications Bolting No 6
A193-B8A193- B7
Specifications Bolt Nut No 7
A194-8A194-2H
Specifications Bushing No 13
50%SS+50%PTFE
Specifications Cv
48
Specifications End Cap No 2
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI3A / 1.4308A216 - WCB / SCPH2 / 1.0619
Specifications Gland No 14
SUS 316
Specifications Handle Adapter 3 4 No 24
A351 -CF8
Specifications Lever 12 2 12 No 20
SUS 304
Specifications Lever Nut 12 2 12 No 18
A194-8
Specifications Lever Sleeve No 19
VINYL PLASTIC
Specifications Lock Device 12 2 12 No 21
SUS 304
Specifications Nameplate No 28
SUS 304
Specifications Options
Casting per NACE/MR - 01 -75 for Sour Gas Service | Castings Approved by TUV AD 2000-Merkblatt W0/EN 10204 3.2 Form. (EN 10204 3.1 Form is free) | Other Alloy are Available
Specifications O Ring No 11
FKM (VITON)
Specifications Pipe Handle 3 4 No 23
A53+Zn PLATED
Specifications Port
0.98
Specifications Set Screw 3 4 No 25
A193-B8
Specifications Size
1 in
Specifications Snap Ring 3 4 No 26
SUS 304
Specifications Stem No 8
SUS 316SUS 304
Specifications Stem Nut No 16
A194-8
Specifications Stem Packing No 12
PTFE
Specifications Stop Bolt No 22
A193- B8
Specifications Stop Lock Cap No 17
SUS 304
Specifications Thrust Washer No 10
PTFE
Specifications Torque
89 in·lbs
Specifications Triangle Stopper 3 4 No 27
SUS 420
Specifications Weight
10.81 lbs
