ASME Class 600 24" Paddle Spacer for Line Blinds & Bleed Rings
ASME Class 600 24" Paddle Spacer for Line Blinds & Bleed Rings
SKU:LIN-c1bf02
Durable ASME Class 600 24" Paddle Spacer with 1480 psi pressure rating for water, oil, and gas services. Compliant with ASME and ISO 9001:2008 standards.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
ASME Class 600 24" Paddle Spacer for Line Blinds & Bleed Rings
$399.99
Quantity: 1
Claim Your Seller Account
ASME Class 600 24" Paddle Spacer for Line Blinds & Bleed Rings
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ASME Class 600 24" Paddle Spacer is a robust component designed for industrial applications, offering a pressure rating of 1480 psi at 100°F for water, oil, and gas services. Crafted from high-quality carbon steel, this paddle spacer ensures durability and performance. Compliant with ASME standards and ISO 9001:2008, it features a reliable one-coat shop primer, versatile surface finish options, and can be customized to other alloys upon request. With precise dimensions and strict adherence to industry codes, this spacer guarantees efficiency and safety in piping systems.
Product Specifications
Additional Information Additional Information
One coat of standard shop primer will be applied to all carbon steel Line Blinds unless specified differently.Mill finish is standard. Other surface finishes are available. Contact factory for options. Standard materials are: SA516 Gr.70304 Stainless Steel316 Stainless Steel Other alloys can be furnished upon requestSure Flow Equipment Line Blinds are produced in strict accordance with the following codes of practice: ASME B16.48ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

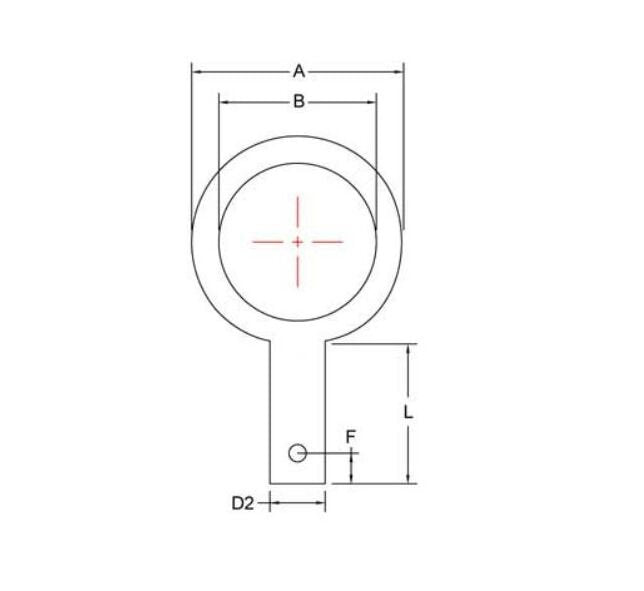

Dimensions Diameter E
2 in
Dimensions Dimension A
31 in
Dimensions Dimension B
23 1/2 in
Dimensions Dimension C
33 in
Dimensions Dimension D1
6 in
Dimensions Dimension D2
1 1/2 in
Dimensions Dimension F
1 in
Dimensions Dimension L
6 in
Dimensions Size
24 in
Dimensions Thickness
2 7/8 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 600 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Material
Carbon Steel
Specifications Prefix Size
2400
