ASP Series Aluminum Plugs for 37 Degree Flared Fittings
ASP Series Aluminum Plugs for 37 Degree Flared Fittings
SKU:PLU-8159eb
Protect your 37° flared fittings and threaded ports with precision using ASP Series Aluminum Plugs. Durable, easy to install, and compliant with MIL-C-5501/1, NAS-818, NAS-836.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
ASP Series Aluminum Plugs for 37 Degree Flared Fittings
$14.99
Quantity: 1
Claim Your Seller Account
ASP Series Aluminum Plugs for 37 Degree Flared Fittings
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

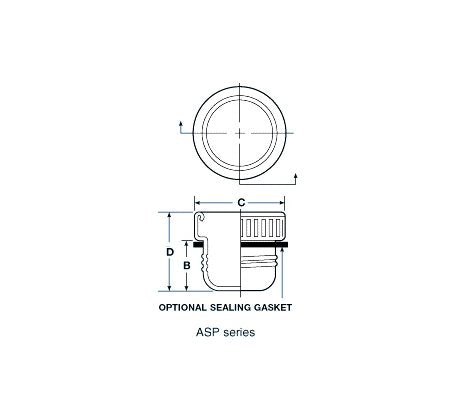

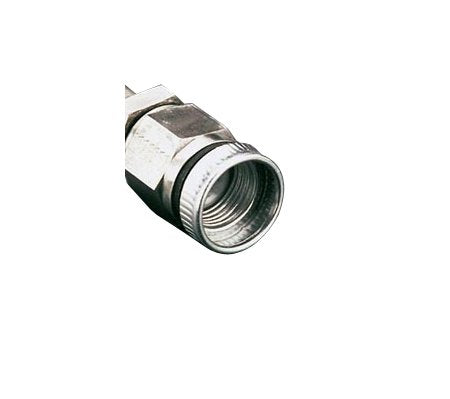

The ASP Series Aluminum Plugs are expertly designed to safeguard 37° flared fittings and straight-threaded ports with precision. Crafted from durable 3003-0 Aluminum Alloy, these plugs feature a nose section that ensures a secure seal on flared fittings without the need for a gasket. For low-pressure sealing on threaded ports, opt for the ASP-GN series which includes a neoprene shoulder gasket. With applicable specifications meeting MIL-C-5501/1, NAS-818, and NAS-836, these plugs deliver reliable performance. Offering dimensions of B: 0.700 in, C: 1.110 in, and D: 0.950 in, they are designed to fit a thread size of 7/8"-14. Consult Caplugs for specialized Butyl or Buna N rubber gaskets to tailor your sealing needs.
Product Specifications
Specifications Applicable Specification
MIL-C-5501/1 | NAS-818 | NAS-836
Specifications Color
Silver (Natural)
Specifications Dimension B
0.700 in
Specifications Dimension C
1.110 in
Specifications Dimension D
0.950 in
Specifications Material
3003-0 Aluminum Alloy
Specifications Note
Standard ASP Plugs listed below do not include gasket.
Specifications To Fit Thread Size
7/8"-14
