ASP Series Threaded Aluminum Plugs for 37 Degree Flared Fittings
ASP Series Threaded Aluminum Plugs for 37 Degree Flared Fittings
SKU:PLU-21c57d

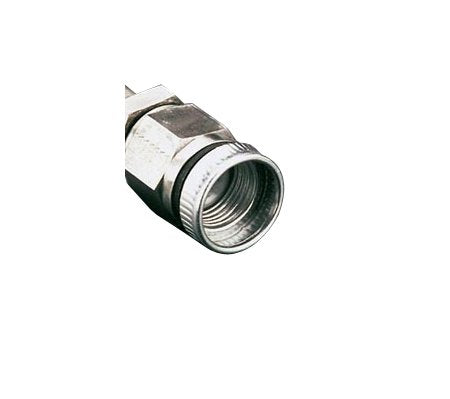

Seal and protect 37º flared fittings and straight-threaded ports with precision-engineered ASP Series Aluminum Plugs. Choose neoprene shoulder gasket option for low-pressure sealing. Compliant with MIL-C-5501/1, NAS-818, NAS-836 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
ASP Series Threaded Aluminum Plugs for 37 Degree Flared Fittings
$24.99
Quantity: 1
Claim Your Seller Account
ASP Series Threaded Aluminum Plugs for 37 Degree Flared Fittings
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

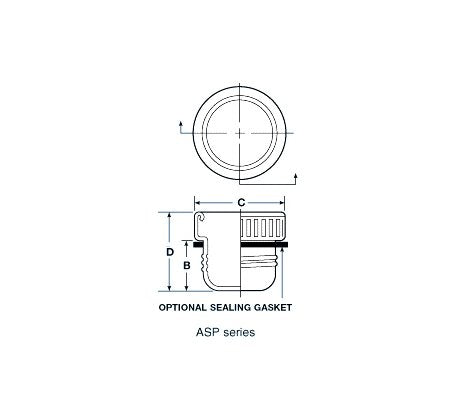

The ASP Series Threaded Aluminum Plugs are precisely engineered to safeguard 37º flared fittings and straight-threaded ports, ensuring optimal protection without the need for additional gaskets. Constructed from durable 3003-0 Aluminum Alloy, these plugs boast a reliable neoprene shoulder gasket option for low-pressure sealing on threaded ports. With dimensions B: 0.650 in, C: 1.38 in, and D: 0.990 in, these plugs are designed to fit thread size 1 1/16"-12. Compliance with MIL-C-5501/1, NAS-818, and NAS-836 standards guarantees performance excellence.
Product Specifications
Specifications Applicable Specification
MIL-C-5501/1 | NAS-818 | NAS-836
Specifications Color
Silver (Natural)
Specifications Dimension B
0.650 in
Specifications Dimension C
1.38 in
Specifications Dimension D
0.990 in
Specifications Material
3003-0 Aluminum Alloy
Specifications Note
Standard ASP Plugs listed below do not include gasket.
Specifications To Fit Thread Size
1 1/16"-12
