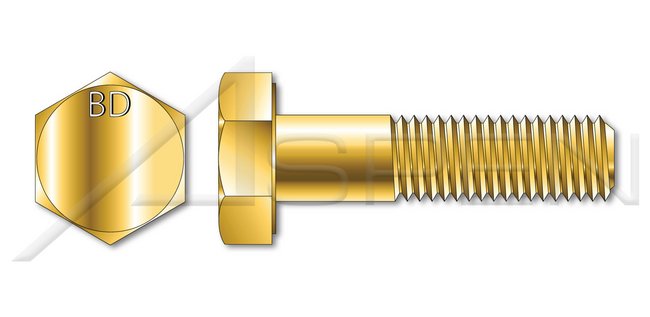

ASTM A354 Grade BD Alloy Steel Yellow Zinc and Baked DFARS UNF Thread Hex Head Cap Screw Bolt

Name: ASTM A354 Grade BD Alloy Steel Yellow Zinc and Baked DFARS UNF Thread Hex Head Cap Screw Bolt
Brand: Aspen Fasteners
SKU: BOL-5014bb
Price: 49.99 USD
Availability: OutOfStock

SKU:BOL-5014bb

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Hex Bolts have a six-sided hexagonally shaped head designed to be mated with a nut. Conversely, Cap Screws are designed to be threaded into a pre-tapped hole, for example a piece of machinery. Cap Screws are typically produced to tighter tolerances than bolts and will feature a washer face under the head and a chamfered point.

Product Specifications

Additional Information

Military grade fasteners are DFARS compliant and made in North America. Certifications available.Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.Washer face provides a precision bearing surface.Chamfered point improves engagement with a nut or pre-tapped hole.In general, fine thread fasteners are about 10% stronger than coarse threads under static loading.

Specifications Coating

Zinc Plated and Baked

Specifications Coating Color

Yellow

Specifications Country Of Origin

Made in U.S.A.

Specifications Drive Style

External Hex Drive

Specifications Head Detail

Washer Face

Specifications Head Style

Hex Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.2.1.BH) | Defense Federal Acquisition Regulation Supplement (DFARS)

Specifications Material

Steel

Specifications Material Grade

Alloy Steel ASTM A354 Grade BD

Specifications Point

Chamfered Point

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Pitch

Fine Thread

ASTM A354 Grade BD Alloy Steel Yellow Zinc and Baked DFARS UNF Thread Hex Head Cap Screw Bolt
