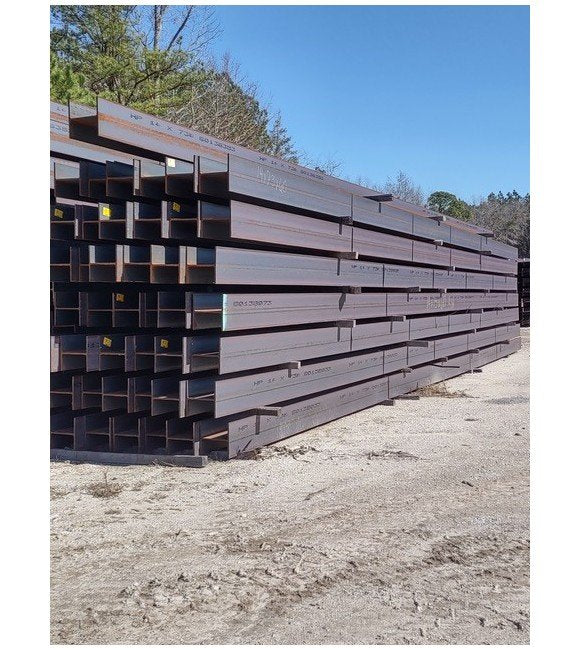

ASTM Certified H Pile Beam
ASTM Certified H Pile Beam
SKU:HPI-5f9006
ASTM Certified H Pile Beam with HP12 Section Number, 84 lb/ft, and ASTM A572-50, A588, A709-50, A992 compliance. Available in 20-70 ft lengths.
Regular price
$4,999.00
Regular price
Sale price
$4,999.00
Unit price
per
Initiate Order
ASTM Certified H Pile Beam
$4,999.00
Quantity: 1
Claim Your Seller Account
ASTM Certified H Pile Beam
$4,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ASTM Certified H Pile Beam offered by Delta Steel is a rugged and reliable structural steel solution designed to meet the demands of heavy-duty construction projects. With a Section Number of HP12 and a weight of 84 lb per foot, these beams provide exceptional strength and stability. Featuring a Section Depth A of 12.28 in, Flange Width B of 12.295 in, and compliance with ASTM standards including A572-50, A588, A709-50, and A992, these beams guarantee durability and performance. Available in standard lengths ranging from 20 to 70 feet in 5-foot increments, these H Pile Beams are perfect for a wide range of industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Flange Thickness C
0.685 in
Specifications Flange Width B
12.295 in
Specifications Increments
5 ft 0 in.
Specifications Industry Standards
American Society for Testing and Materials (ASTM) 913-71 | American Society for Testing and Materials (ASTM) A572-50 | American Society for Testing and Materials (ASTM) A588 | American Society for Testing and Materials (ASTM) A709-50 | American Society for Testing and Materials (ASTM) A992
Specifications Section Depth A
12.28 in
Specifications Section Number
HP12
Specifications Standard Length
20 to 70 ft
Specifications Web Thickness D
0.685 in
Specifications Weight Per Foot
84 lb
