ASTM Certified H Pile Beam
ASTM Certified H Pile Beam
SKU:HPI-5e8961
Discover the ASTM Certified 42 lb H Pile Beam - Strong, Durable & Compliant. Order now!
Regular price
$1,250.00
Regular price
Sale price
$1,250.00
Unit price
per
Initiate Order
ASTM Certified H Pile Beam
$1,250.00
Quantity: 1
Claim Your Seller Account
ASTM Certified H Pile Beam
$1,250.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

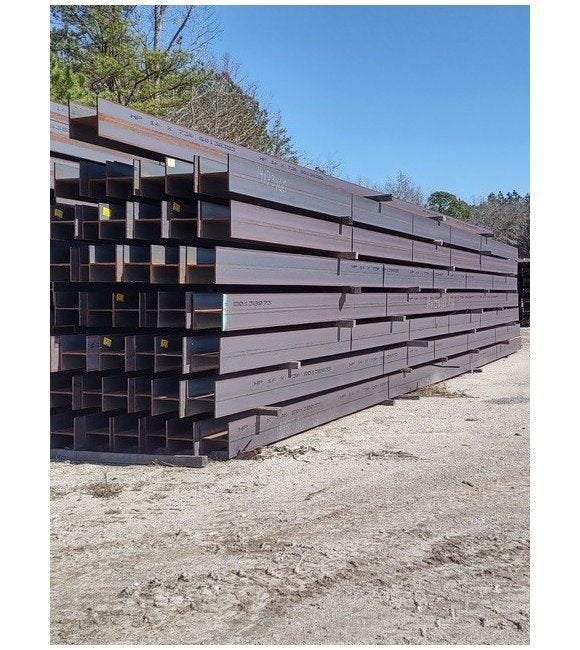

The ASTM Certified H Pile Beam offered by Delta Steel is a structural steel beam designed for exceptional strength and durability. With a Section Number of HP10 and a Weight Per Foot of 42 lb, this beam features precise dimensions including a Section Depth A of 9.70 in, Flange Width B of 10.075 in, Flange Thickness C of 0.415 in, and Web Thickness D of 0.415 in. Available in standard lengths ranging from 20 to 70 ft in 5 ft 0 in increments, this beam meets rigorous industry standards including ASTM 913-66, ASTM A572-50, ASTM A588, ASTM A709-50, and ASTM A992, ensuring top-notch quality and compliance for institutional projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Flange Thickness C
0.415 in
Specifications Flange Width B
10.075 in
Specifications Increments
5 ft 0 in.
Specifications Industry Standards
American Society for Testing and Materials (ASTM) 913-66 | American Society for Testing and Materials (ASTM) A572-50 | American Society for Testing and Materials (ASTM) A588 | American Society for Testing and Materials (ASTM) A709-50 | American Society for Testing and Materials (ASTM) A992
Specifications Section Depth A
9.70 in
Specifications Section Number
HP10
Specifications Standard Length
20 to 70 ft
Specifications Web Thickness D
0.415 in
Specifications Weight Per Foot
42 lb
