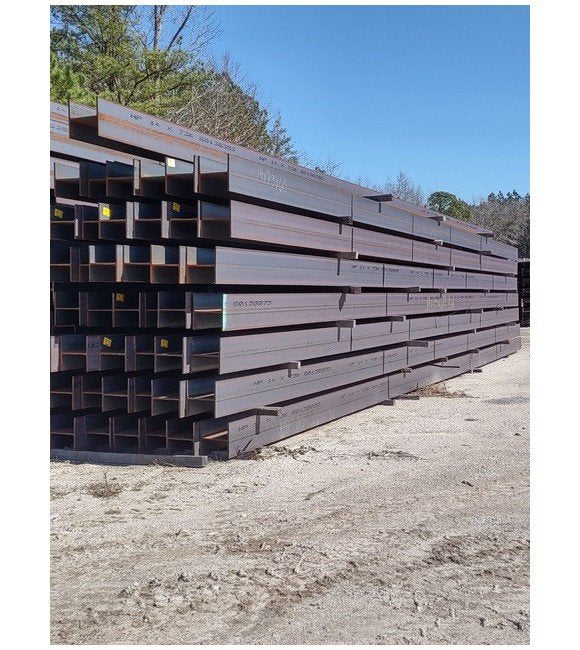

ASTM Certified H Pile Beam
ASTM Certified H Pile Beam
SKU:HPI-792c23
High-quality ASTM Certified H Pile Beam for industrial and infrastructure projects. Meets ASTM standards. Available in various lengths.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
ASTM Certified H Pile Beam
$129.99
Quantity: 1
Claim Your Seller Account
ASTM Certified H Pile Beam
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ASTM Certified H Pile Beam offered by Delta Steel is a durable and reliable structural beam designed to meet the demanding requirements of industrial and infrastructure projects. With a Section Number of HP18 and weighing 181 lbs per foot, this beam provides exceptional strength and load-bearing capacity. Its precise dimensions include a Section Depth A of 18.00 in, Flange Width B of 18.000 in, Flange Thickness C of 1.000 in, and Web Thickness D of 1.000 in. Available in standard lengths ranging from 20 to 70 ft in 5 ft increments, it conforms to industry standards such as ASTM A572-50, ASTM A588, and ASTM A992, ensuring quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Flange Thickness C
1.000 in
Specifications Flange Width B
18.000 in
Specifications Increments
5 ft 0 in.
Specifications Industry Standards
American Society for Testing and Materials (ASTM) 913-85 | American Society for Testing and Materials (ASTM) A572-50 | American Society for Testing and Materials (ASTM) A588 | American Society for Testing and Materials (ASTM) A709-50 | American Society for Testing and Materials (ASTM) A992
Specifications Section Depth A
18.00 in
Specifications Section Number
HP18
Specifications Standard Length
20 to 70 ft
Specifications Web Thickness D
1.000 in
Specifications Weight Per Foot
181 lb
