ASTM HP14 H Pile Beam
ASTM HP14 H Pile Beam
SKU:HPI-7a573f
ASTM HP14 H Pile Beam, 89 lb/ft, 13.83" depth, ASTM A572-50, ASTM A588, ASTM A709-50, ASTM A992 compliant.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
ASTM HP14 H Pile Beam
$599.99
Quantity: 1
Claim Your Seller Account
ASTM HP14 H Pile Beam
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

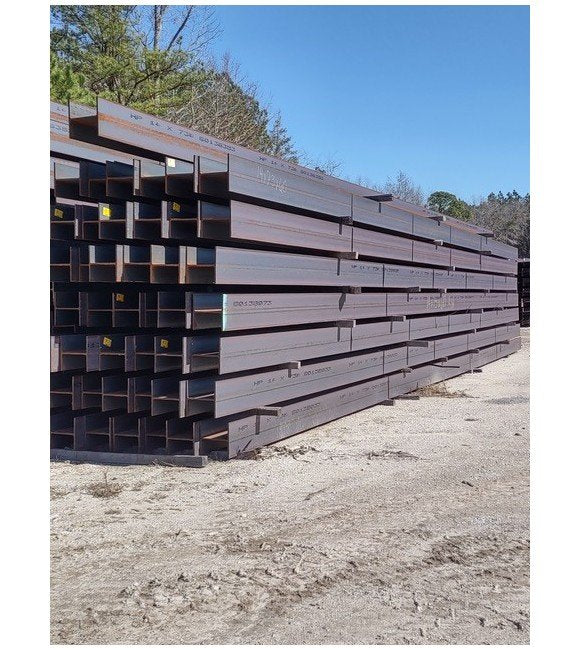

The ASTM HP14 H Pile Beam is a robust structural steel solution stocked in standard lengths from 20' to 70' in 5'0" increments. With a weight of 89 lb per foot, a section depth of 13.83 in, and flange dimensions meeting ASTM standards, this beam offers exceptional strength and durability. Compliant with ASTM A572-50, ASTM A588, ASTM A709-50, and ASTM A992 standards, this beam is ideal for projects requiring high-quality materials.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Flange Thickness C
0.615 in
Specifications Flange Width B
14.695 in
Specifications Increments
5 ft 0 in.
Specifications Industry Standards
American Society for Testing and Materials (ASTM) 913-74 | American Society for Testing and Materials (ASTM) A572-50 | American Society for Testing and Materials (ASTM) A588 | American Society for Testing and Materials (ASTM) A709-50 | American Society for Testing and Materials (ASTM) A992
Specifications Section Depth A
13.83 in
Specifications Section Number
HP14
Specifications Standard Length
20 to 70 ft
Specifications Web Thickness D
0.615 in
Specifications Weight Per Foot
89 lb
