ASTM Spec F1145-92 Type 1 Forged Stainless Steel Turnbuckle
ASTM Spec F1145-92 Type 1 Forged Stainless Steel Turnbuckle
SKU:WIR-41715d
Premium forged stainless steel turnbuckle meeting ASTM F1145-92 Type 1 Class H standard. WLL: 1,200 lbs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

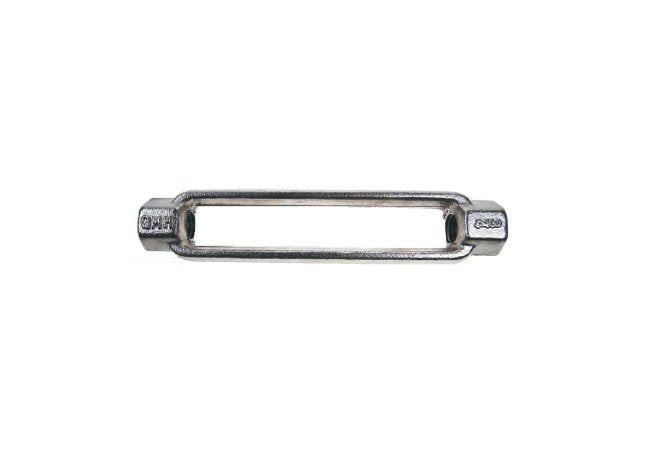

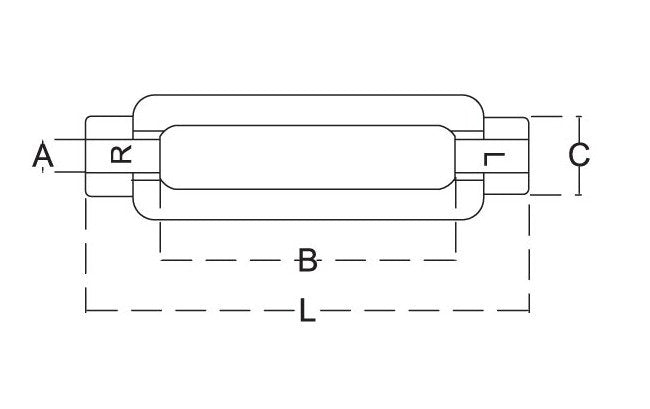

The Forged SS T316 Turnbuckle boasts a durable hex body design crafted to meet the stringent dimensions outlined in the ASTM F1145-92 Type 1, Class H standard. With precise specifications including A: 3/8", B: 6.00", C: 0.95", L: 7.15", it offers a Working Load Limit (WLL) of 1,200 lbs. This premium stainless steel turnbuckle ensures exceptional quality and reliability, ideal for a wide range of applications in various industries.
Product Specifications
Specifications A
3/8"
Specifications B
6.00"
Specifications C
0.95"
Specifications L
7.15"
Specifications Wll Lbs
1,200
Specifications Wt Lb
0.38
