ASTM Standard Steel Merchant Couplings

Name: ASTM Standard Steel Merchant Couplings
Brand: Caylor Industrial Sales, Inc.
SKU: FIT-36a99e
Price: 229.99 USD
Availability: OutOfStock

SKU:FIT-36a99e

Premium ASTM Standard Steel Merchant Couplings - Various sizes, rust-prevented, and galvanized options available. Ideal for industrial applications.

$229.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

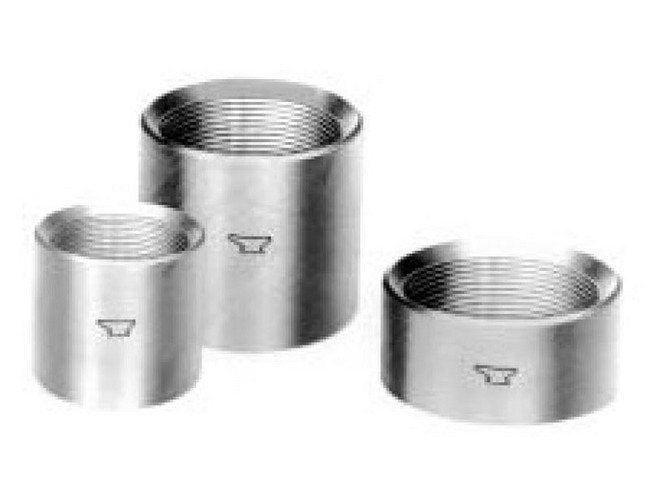

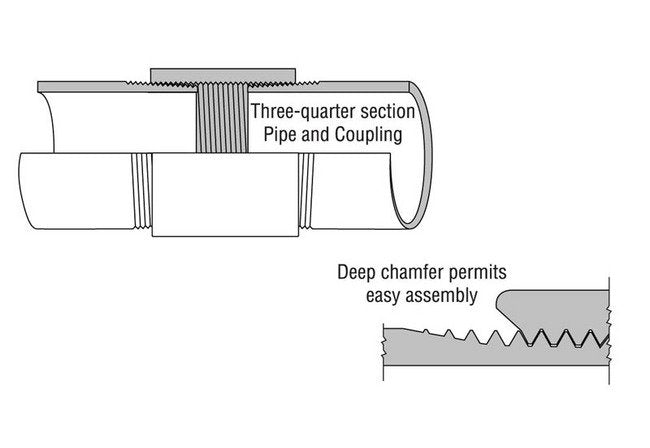

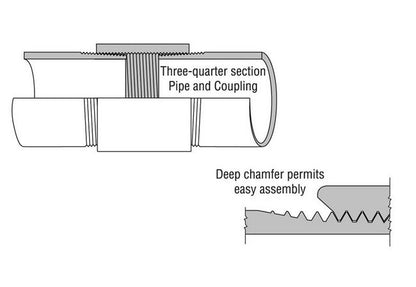

The ASTM Standard Steel Merchant Couplings are precision-manufactured to meet ASTM specification A865. Available in various sizes ranging from 1/8 NPS to 2 NPS, these couplings are straight or taper tapped based on size. API line pipe couplings are recommended for sizes over 6 NPS. Each coupling undergoes rust prevention or phosphating based on size, with the option for galvanized full couplings. Half couplings feature chamfering for easy installation. These durable couplings guarantee quality and reliability for a wide range of applications.

Product Specifications

Specifications Dn

Specifications Length Full

79 mm

Specifications Length Half

38 mm

Specifications Nps

2 1/2

Specifications Outside Diameter

83.00 mm

Specifications Threads

203 mm

Specifications Weight100 Pieces Full

98 kg

Specifications Weight100 Pieces Half

47 kg

ASTM Standard Steel Merchant Couplings
