ATBV Series 10 Inch (in) Society of Automotive Engineers (SAE) Vent Muffler
ATBV Series 10 Inch (in) Society of Automotive Engineers (SAE) Vent Muffler
SKU:MUF-e06a6f
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
ATBV Series 10 Inch (in) Society of Automotive Engineers (SAE) Vent Muffler
$49.99
Quantity: 1
Claim Your Seller Account
ATBV Series 10 Inch (in) Society of Automotive Engineers (SAE) Vent Muffler
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

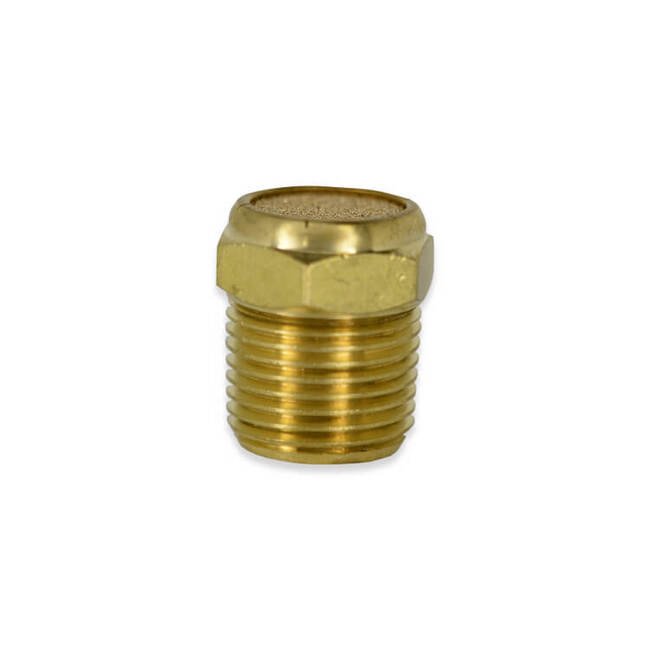

The ATBV Series is a low-profile breather vent used for vacuum relief or pressure equalization for gearboxes or storage vessels. It is available in Brass, Zinc-Plated Steel, and Nickel-Plated Steel. The maximum operating pressure is 150 psi and the temperature range is 35ºF to 300ºF for all materials. The filter element is sintered Bronze with a standard of 40 microns with 10 and 90 microns available. Male thread sizes range from 10-32 inch UNF to 1-1/2 inch NPT.
Product Specifications
Additional Information
SAE Breather Vents are also available in Brass with a 70-micron sintered Bronze screen. The male thread sizes are 7/16”-20, 9/16”-18, 3/4”-16, 7/8”-14 and 1-1/16”-12. The psi and working temperatures are the same as above.
Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Nominal Rating
40 µm
Technical Specs Series
ATBV
Technical Specs Temperature Range
35 to 300 ºF
Technical Specs Thread Size
10 in
Technical Specs Thread Type
Society of Automotive Engineers (SAE)
