ATEX BXA AISI-316 3/4" Straight Fitting
ATEX BXA AISI-316 3/4" Straight Fitting
SKU:FIT-1bc246
ATEX BXA AISI-316 3/4" Straight Fitting: Corrosion-resistant, IECEx-ATEX approved, perfect for hazardous areas.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
ATEX BXA AISI-316 3/4" Straight Fitting
$34.99
Quantity: 1
Claim Your Seller Account
ATEX BXA AISI-316 3/4" Straight Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

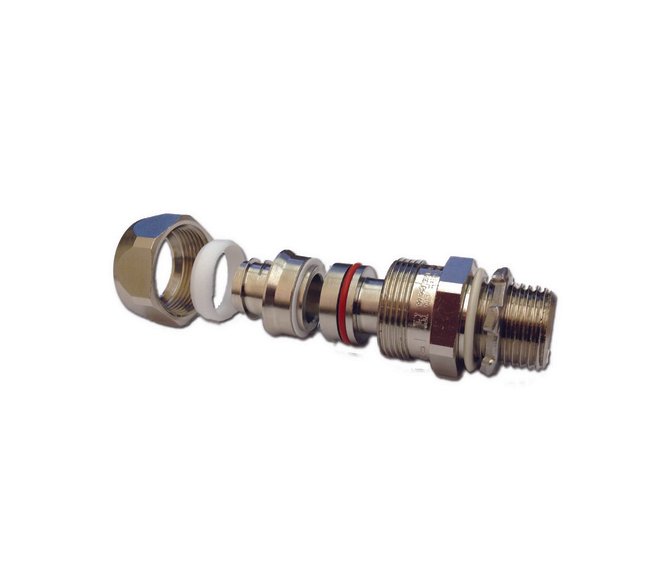

The ATEX BXA AISI-316 3/4" Straight Fitting offers exceptional corrosion resistance and durability with its construction from AISI-316 Stainless Steel. This fitting features a five-piece design including a gland nut, sealing ring, high tensile grounding cone, barrier container, and body, ensuring a secure seal in explosive-proof areas. With IECEx-ATEX approval and IP 66/67 Ingress Protection rating, this fitting is ideal for metallic flexible conduit applications in hazardous locations. The separate two-compound epoxy included provides added safety by creating a barrier around loose wires. Trust in this fitting for reliability and compliance with international safety standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Core Material
Stainless Steel
Specifications Dimension A
1.457 in
Specifications Dimension B
0.512 in
Specifications Dimension C
1.142 in
Specifications Electrical Trade Size
3/4 in | 19 mm
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Ko Size
3/4 in
Specifications Thread Type
NPT
